ESP32 temperature-controlled fan: DS18B20 and a MOSFET
Open in the lab ▸Make my own copy

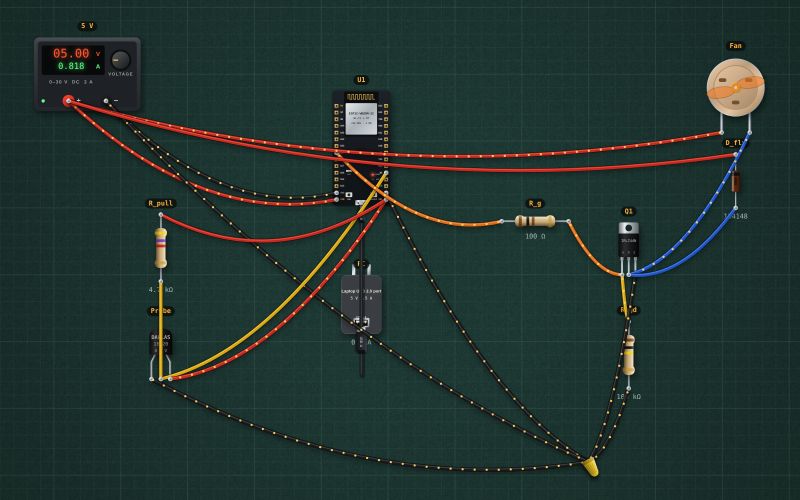

A DS18B20 probe reads the temperature every 2 s and the ESP32 sets the fan speed with 25 kHz PWM through a logic-level MOSFET: off below 26 °C, rising to full at 34 °C, and full speed if the probe stops answering. A diode across the fan catches its kick when the MOSFET turns off. Open it and press Run: the sketch is inside the board (click the board, then Code). Every part, pin and resistor matches what you would build on a real breadboard; the guided build of the same name has the test sheet and hidden faults.
What is on the bench
11 parts, 19 wires, with a sketch (the program runs in the lab). Boards: ESP32 DevKit.
