Arduino servo that follows a knob
Open in the lab ▸Make my own copy

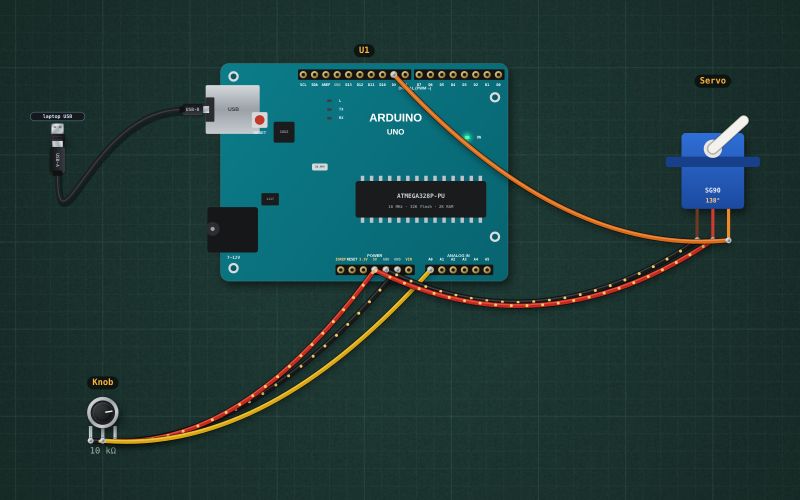

Turn the potentiometer and the servo turns with it. analogRead gives 0 to 1023, map() turns that into 0 to 180°, and the Servo library makes the pulse the servo wants (1 to 2 ms, 50 times a second). The same pattern steers a robot arm joint or a camera mount. Drag the knob. Open it and press Run: the sketch is inside the board (click the board, then Code). Every part, pin and resistor matches what you would build on a real breadboard; the guided build of the same name has the test sheet and hidden faults.
What is on the bench
4 parts, 7 wires, with a sketch (the program runs in the lab). Boards: Arduino Uno R3.
| Arduino Uno R3 | 1 |
|---|---|
| USB charger / port | 1 |
| Potentiometer | 1 |
| Hobby servo | 1 |
