Arduino reaction-time game on an I²C LCD
Open in the lab ▸Make my own copy
Wait for the red LED, then hit the button as fast as you can. A random 2–5 s wait, your time and your best on a 16×2 I²C LCD, and a buzzer if you jump the gun. Most people land between 200 and 300 ms. Open it and press Run: the sketch is inside the board (click the board, then Code). Every part, pin and resistor matches what you would build on a real breadboard; the guided build of the same name has the test sheet and hidden faults.

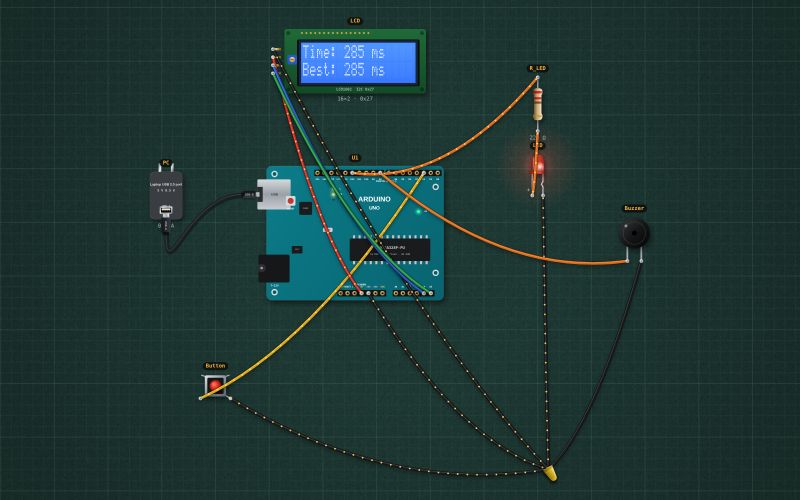

What is on the bench
8 parts, 13 wires, with a sketch (the program runs in the lab). Boards: Arduino Uno R3.
| Arduino Uno R3 | 1 |
|---|---|
| USB charger / port | 1 |
| Resistor | 1 |
| LED | 1 |
| Push button | 1 |
| Active buzzer | 1 |
| I2C LCD | 1 |
Put it on your page
The project runs live inside the frame: readers can press buttons, turn knobs and read the meters.
<iframe src="https://zencircuitlab.com/embed/zclcreaction" width="100%" height="560" style="border:1px solid #2f363a;border-radius:10px" loading="lazy" title="Arduino reaction-time game on an I²C LCD on Zen Circuit Lab"></iframe>
Link
https://zencircuitlab.com/p/zclcreaction
Published by its author under the lab's community terms: it may be opened, copied and changed by anyone. Simulation results are for learning; check a real build against the parts' datasheets.
