Arduino stepper that follows a dial: pot, L298N and a NEMA 17
Open in the lab ▸Make my own copy
Turn the pot and a NEMA 17 stepper turns to the same angle, counting its steps (200 a turn) instead of using a sensor. An Arduino Nano switches the L298N’s two H-bridges and lets the coils go half a second after it arrives so the motor stays cool. Use a 12 V, 0.4 A NEMA 17 with an L298N; the common 1.5–2 A ones need an A4988 or DRV8825. Open it and press Run: the sketch is inside the board (click the board, then Code). Every part, pin and resistor matches what you would build on a real breadboard; the guided build of the same name has the test sheet and hidden faults.

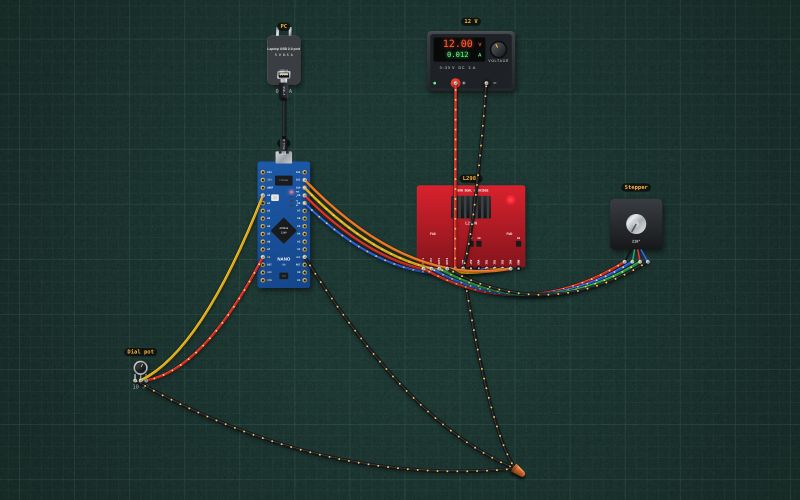

What is on the bench
7 parts, 16 wires, with a sketch (the program runs in the lab). Boards: Arduino Nano.
| Arduino Nano | 1 |
|---|---|
| USB charger / port | 1 |
| Potentiometer | 1 |
| Bench power supply | 1 |
| L298N motor driver | 1 |
| Stepper motor (bipolar) | 1 |
