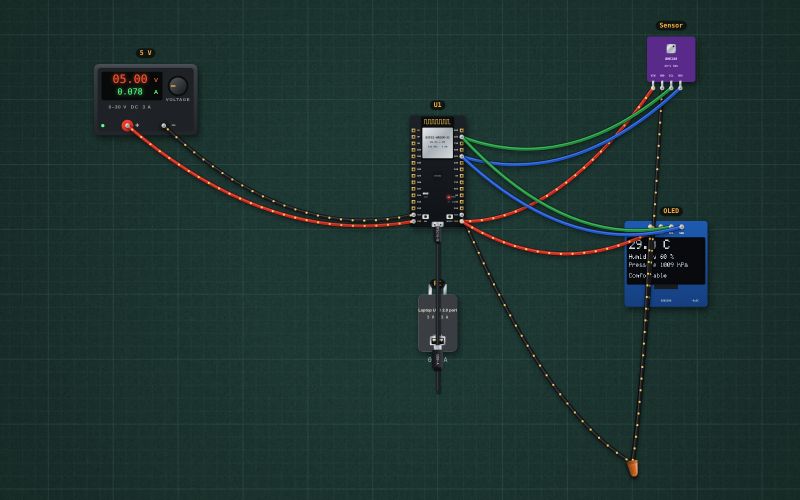

ESP32 weather station with a comfort word: BME280 and OLED
Open in the lab ▸Make my own copy
Temperature, humidity and pressure from a BME280 on a 128×64 OLED, both on the same two I²C wires, with a word for how it feels: comfortable, humid, cool or too hot. Click the sensor and change the weather. Open it and press Run: the sketch is inside the board (click the board, then Code). Every part, pin and resistor matches what you would build on a real breadboard; the guided build of the same name has the test sheet and hidden faults.
What is on the bench
6 parts, 12 wires, with a sketch (the program runs in the lab). Boards: ESP32 DevKit.
| Bench power supply | 1 |
|---|---|
| ESP32 DevKit | 1 |
| USB charger / port | 1 |
| BME280 environment sensor | 1 |
| OLED display (I²C) | 1 |
Put it on your page
The project runs live inside the frame: readers can press buttons, turn knobs and read the meters.
<iframe src="https://zencircuitlab.com/embed/zclcweather" width="100%" height="560" style="border:1px solid #2f363a;border-radius:10px" loading="lazy" title="ESP32 weather station with a comfort word: BME280 and OLED on Zen Circuit Lab"></iframe>
Link
https://zencircuitlab.com/p/zclcweather
Published by its author under the lab's community terms: it may be opened, copied and changed by anyone. Simulation results are for learning; check a real build against the parts' datasheets.
