Solar fan, lights and phone charging on 12 V, under ₱15,000
Open in the lab ▸Make my own copy

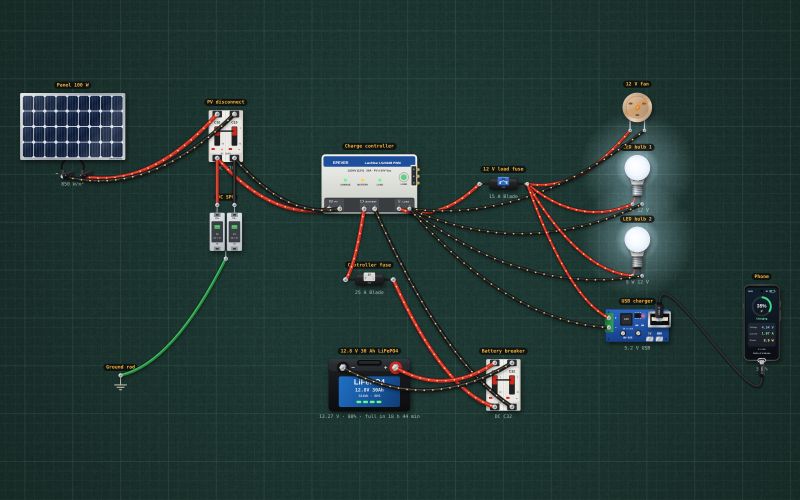

A 100 W panel and a 12.8 V 30 Ah LiFePO4 battery run a 12 V fan through the night, two LED bulbs and phone charging, with no inverter: everything stays 12 V DC, so nothing is lost converting to 220 V and back. About 380 Wh stored, enough for a 15 W fan for 10 hours plus the lights. The 20 A controller has room for a second panel later. Every part is on the bench, and Buy all the parts (on the project strip, or Menu → Make) lists them with an estimated price and shop links. Estimates are for the Philippines; check each listing before you buy.
What is on the bench
14 parts, 22 wires.
| DC breaker | 2 |
|---|---|
| Fuse | 2 |
| 12 V DC LED bulb | 2 |
| Solar panel | 1 |
| Solar charge controller | 1 |
| LiFePO4 battery | 1 |
| Ground symbol | 1 |
| Surge protector (SPD) | 1 |
| DC motor | 1 |
| USB step-down module | 1 |
| Smartphone | 1 |
