ESP32 weather station: BME280 on an OLED
Open in the lab ▸Make my own copy

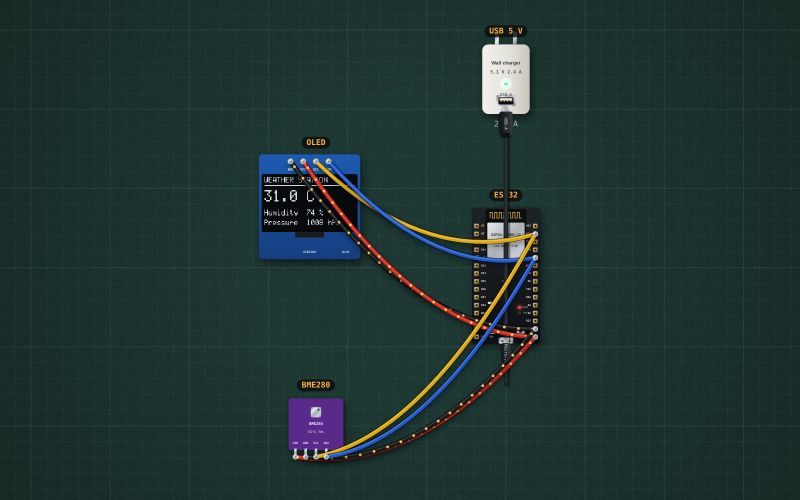

Temperature, humidity and air pressure on a 0.96" OLED, updated every second. Both modules share the same two I²C wires (SDA on GPIO21, SCL on GPIO22): each has its own address, 0x76 for the BME280 and 0x3C for the display, so the ESP32 talks to them one at a time on the same bus. Click the BME280 and change the weather: the screen follows. A sudden pressure drop of a few hPa in a few hours is the old barometer sign of a storm coming.
What is on the bench
4 parts, 9 wires, with a sketch (the program runs in the lab). Boards: ESP32 DevKit.
| ESP32 DevKit | 1 |
|---|---|
| USB charger / port | 1 |
| OLED display (I²C) | 1 |
| BME280 environment sensor | 1 |
