Slide switch (SS12D00)

Switches & protection · SS12D00 SPDT

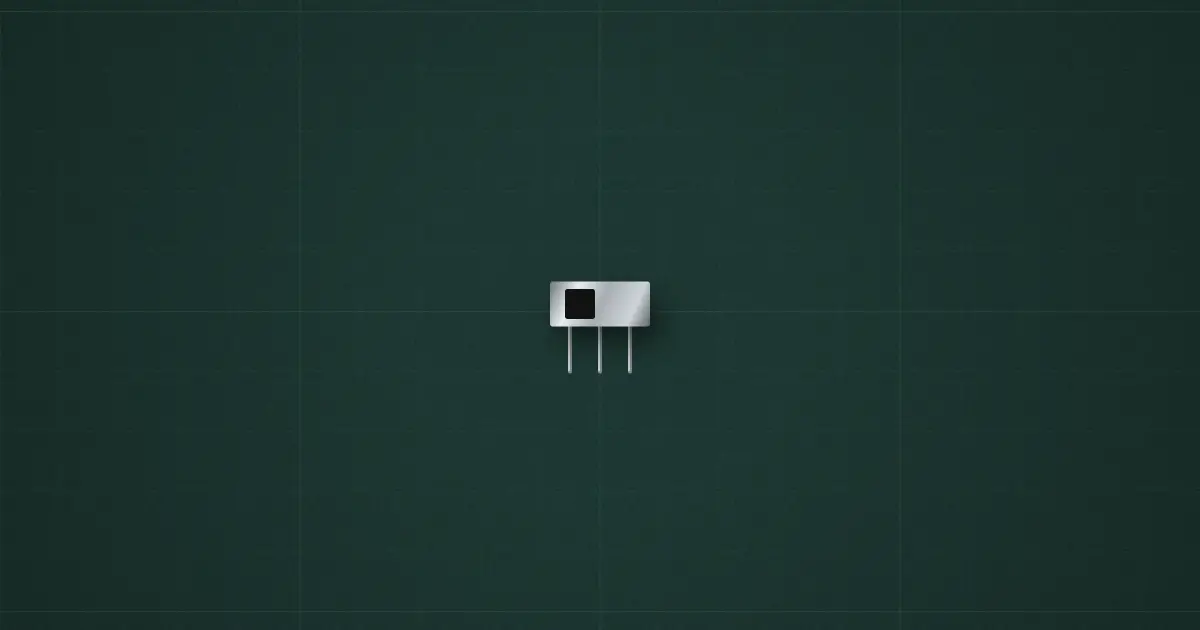

SS12D00 miniature slide switch · SPDT · 0.5 A 50 V DC · common on the middle pin · now to pin 1 · click to slide

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: SS12D00 slide switch

Pins

• 1
• COM (2)
• 3

Ratings and limits

How to use it

Power on/off and mode select on small gadgets. For battery power switching keep it on the low-current side, or switch a MOSFET.
