Breadboard simulator

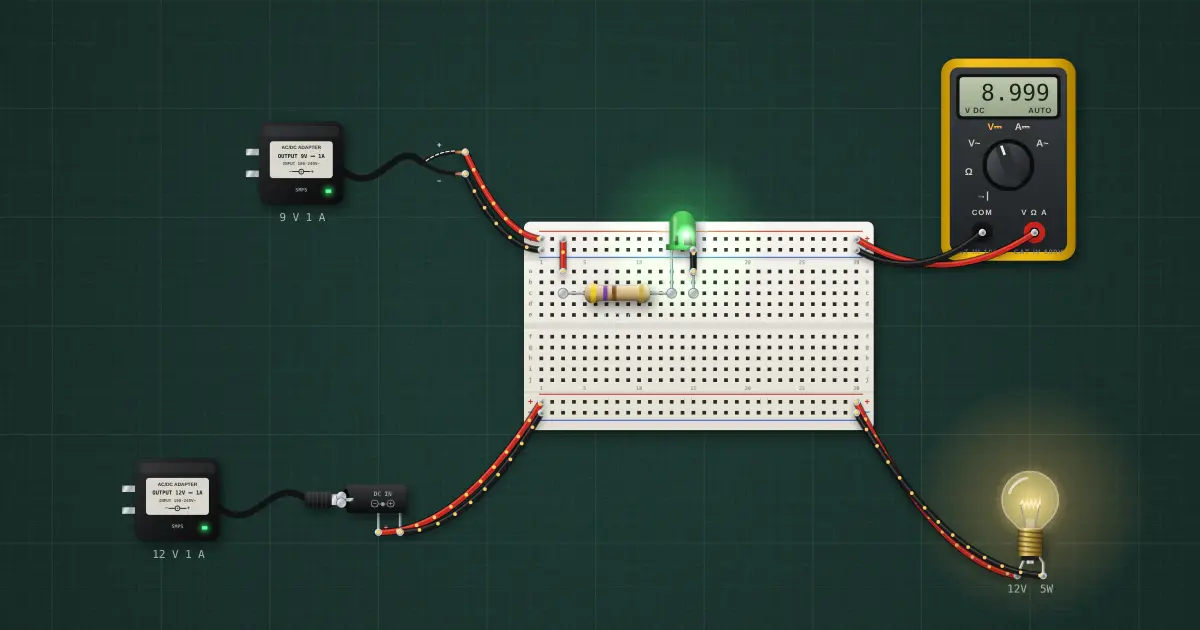

A 400-point breadboard whose strips connect the way real ones do: five-hole rows, power rails along the edges, and parts whose legs sit in the holes (or do not, if you miss). Jumper wires, Dupont leads and the breadboard's own loose contacts have their resistance, so a high-current circuit on a breadboard shows its sag and its hot wires. From the breadboard, lay the circuit out on a perfboard and solder the back, or on a printed circuit board with routed copper, and run it on the same solver. A 3D view shows the board from any angle with the legs in their holes.
Open the labFree, in your browser, no account needed. Part of a free electronics simulator with 293 parts, 193 lessons and 66 builds.
What you can do
- The first circuits of the Fundamentals course are built on it: battery, switch, resistor, LED, then transistors and ICs.
- Learn which rows are joined before you plug in, by hovering a hole.
- Move from breadboard to perfboard to PCB without rebuilding the circuit.
- Find out why a breadboard is not for high current: watch a contact or a jumper heat up.
Builds (7)

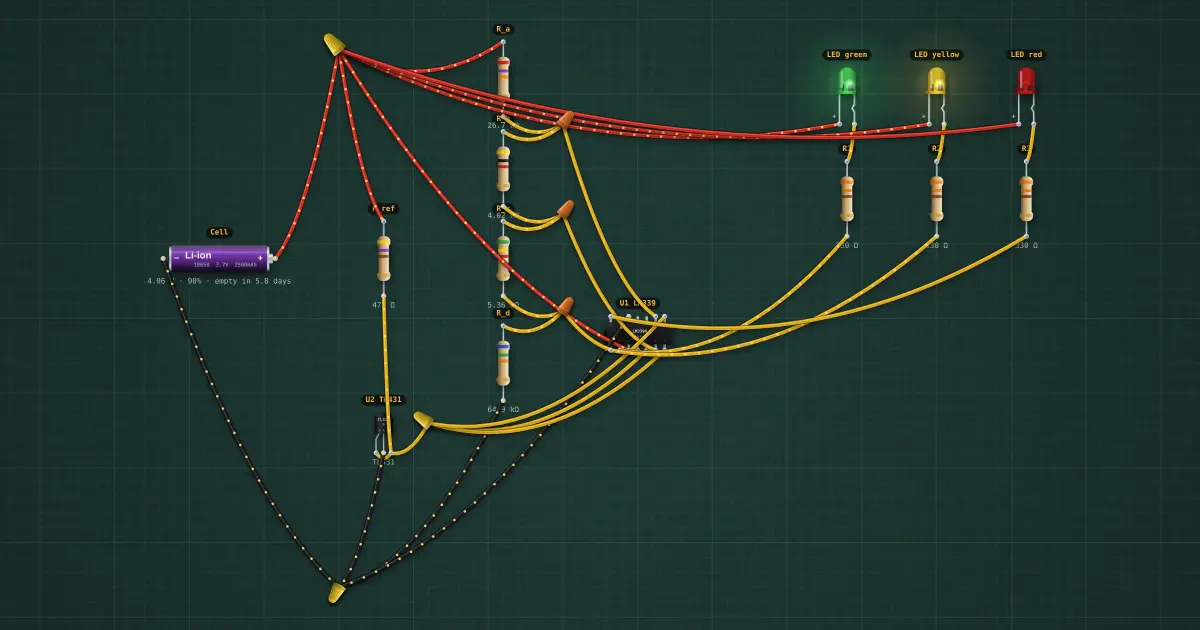

18650 battery level indicator
Three LEDs show full, half and low.

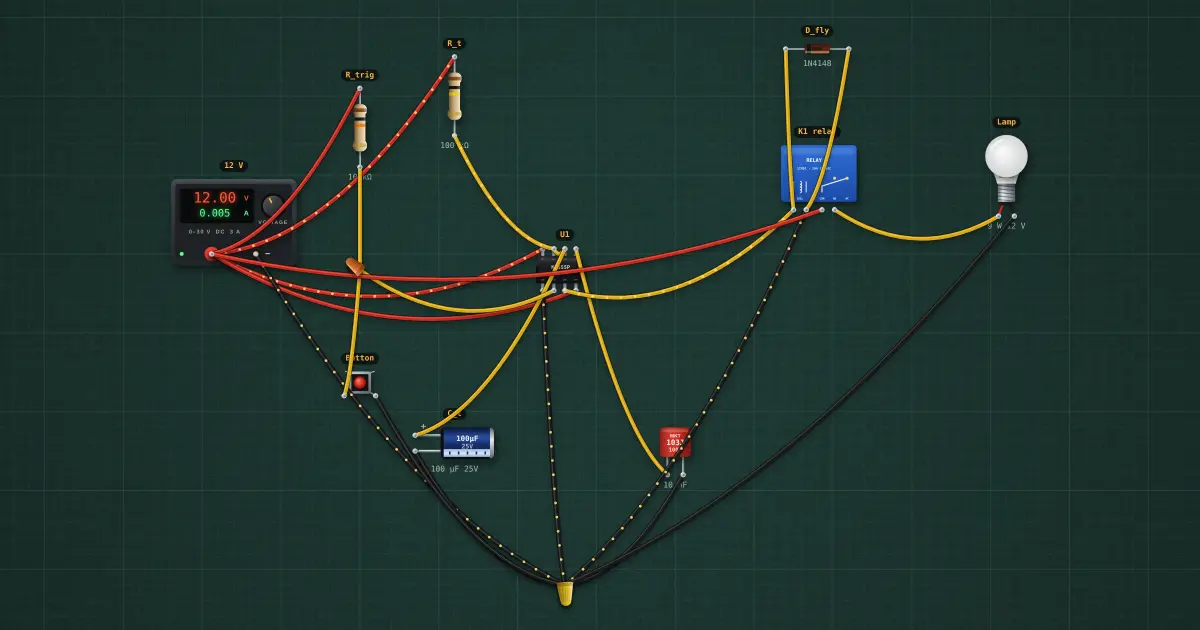

555 delay-off timer with relay
Switches a load off after a set time.

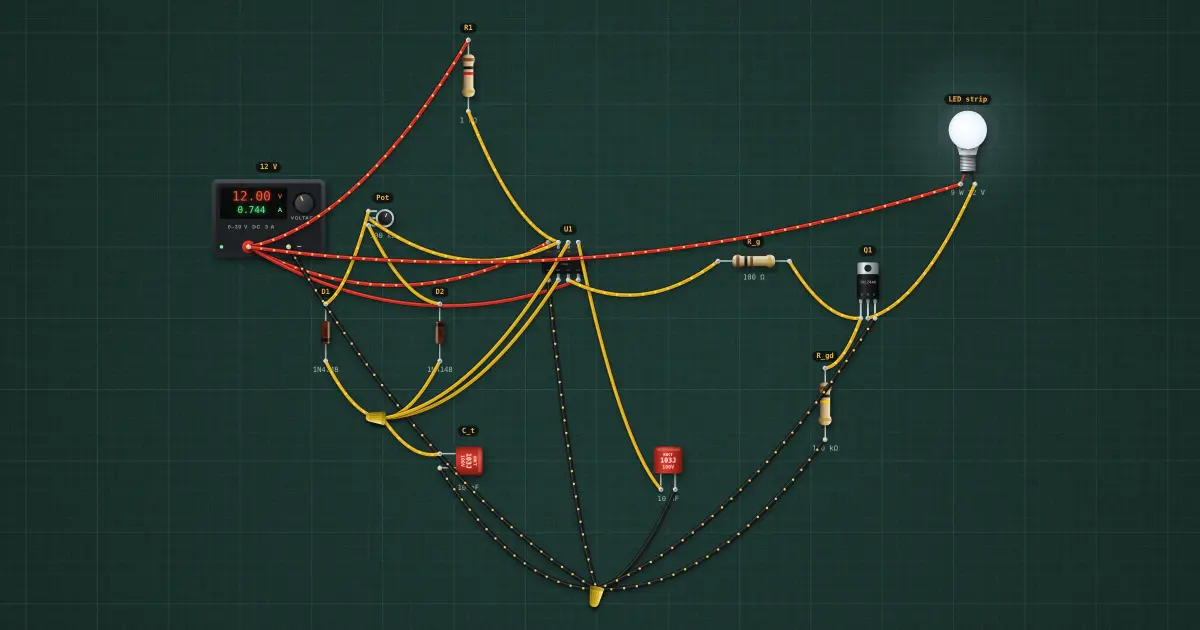

PWM fan or LED dimmer
Variable brightness or speed from a knob.

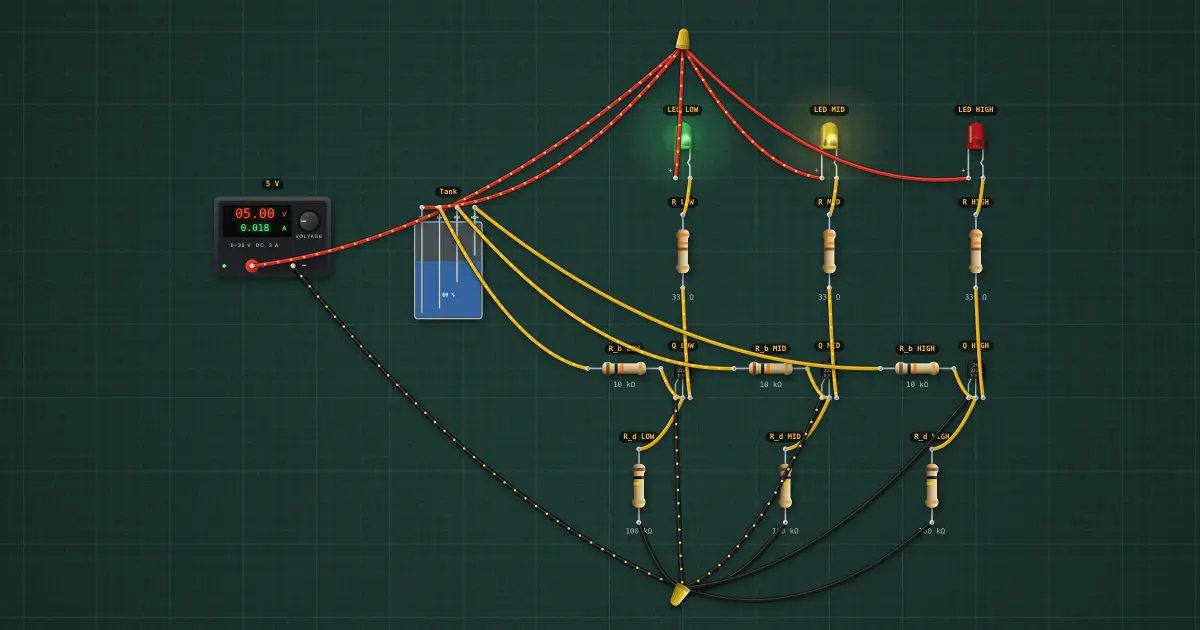

Water-level indicator
LEDs show tank level through probe wires.

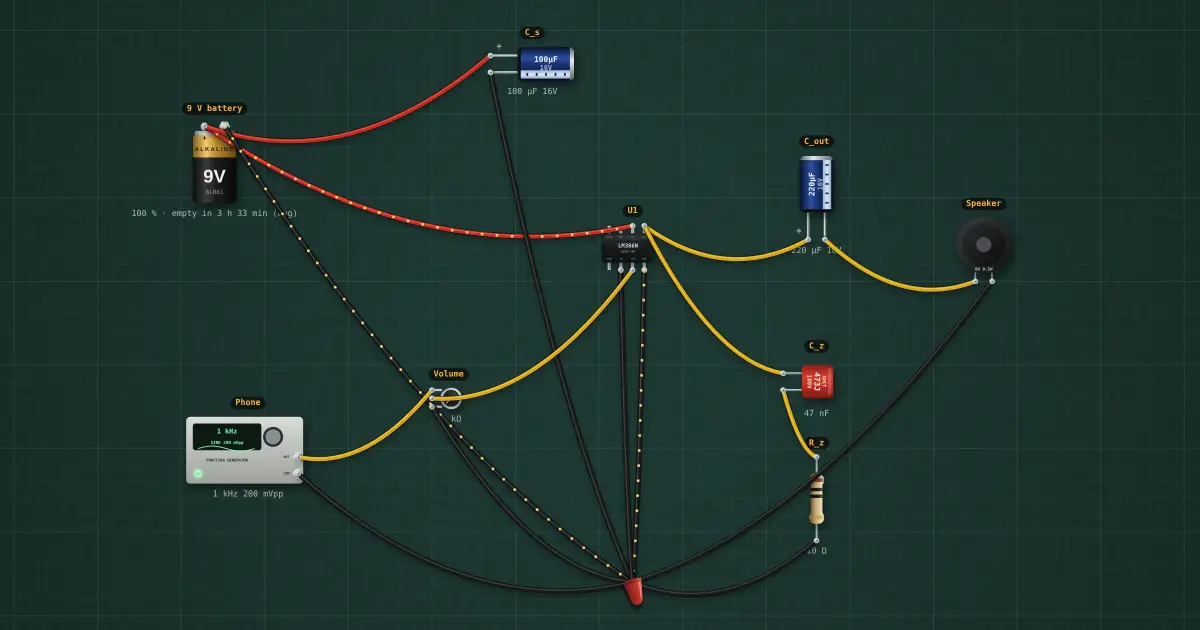

LM386 speaker amplifier box
Small amplifier for a phone or radio.
3. Potentiometer: a dimmer
Step 3 of the automatic light: VR1 (10 k) between the switch and R1. Knob at 0: about 15 mA. Knob at the far end…
12. 555 timer: stay on after they pass
Step 12 of the automatic light: The PIR now drives Q2 as an inverter, pulling TRIG low while it sees movement (R8…
Lessons (2)
Perfboard: make every connection yourself
A breadboard joins each 5-hole strip for you. A perfboard joins nothing: every hole is its own island until you solder…
Arduino Nano on a breadboard: a servo sweep
The Nano is an Uno shrunk to 45 × 18 mm, with the same ATmega328P. The Servo library makes 50 Hz pulses on any pin…
