Net meter

Connectors & wiring · kWh in / out

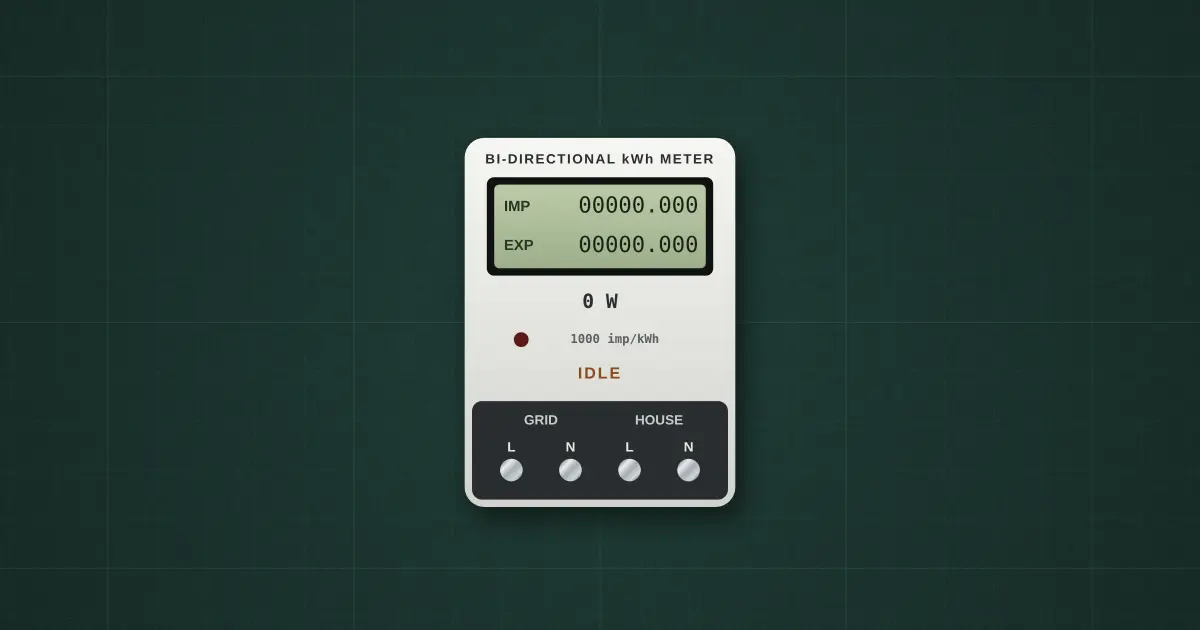

Bi-directional kWh meter · 1000 imp/kWh

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• Grid L
• Grid N
• House L
• House N

Lessons and builds that use it

• House panel: main breaker and four branch circuits (build)
• Grid-tie solar in a brownout: why the lights go out even at noon (build)
• Code and safety: PEC 2017 and NEC 690 in one page
