Via
Plated via · 1 mm pad, 0.5 mm drill · joins top and bottom copper

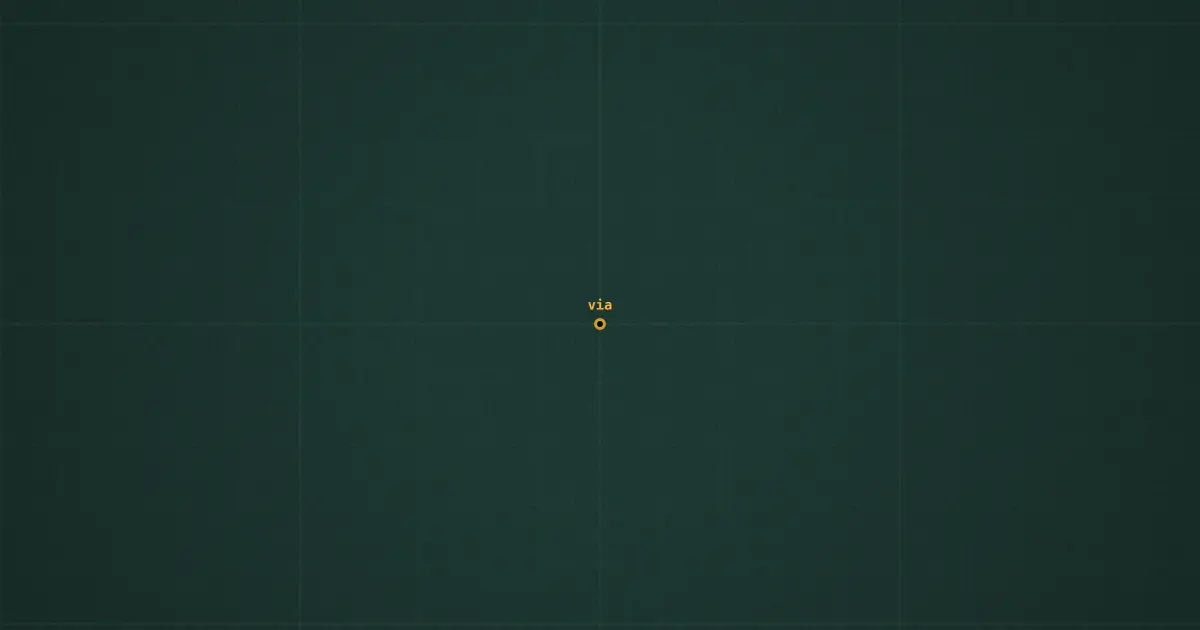

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: Plated through via
Pins
- via
Ratings and limits
| Pad | 1 mm |
|---|---|
| Drill | 0.5 mm |
| Current | ≈ 1 A per via (use several for more) |
How to use it
Moves a trace from one layer to the other. Put it on the board, route a top trace to it and a bottom trace away from it.
