DC barrel jack

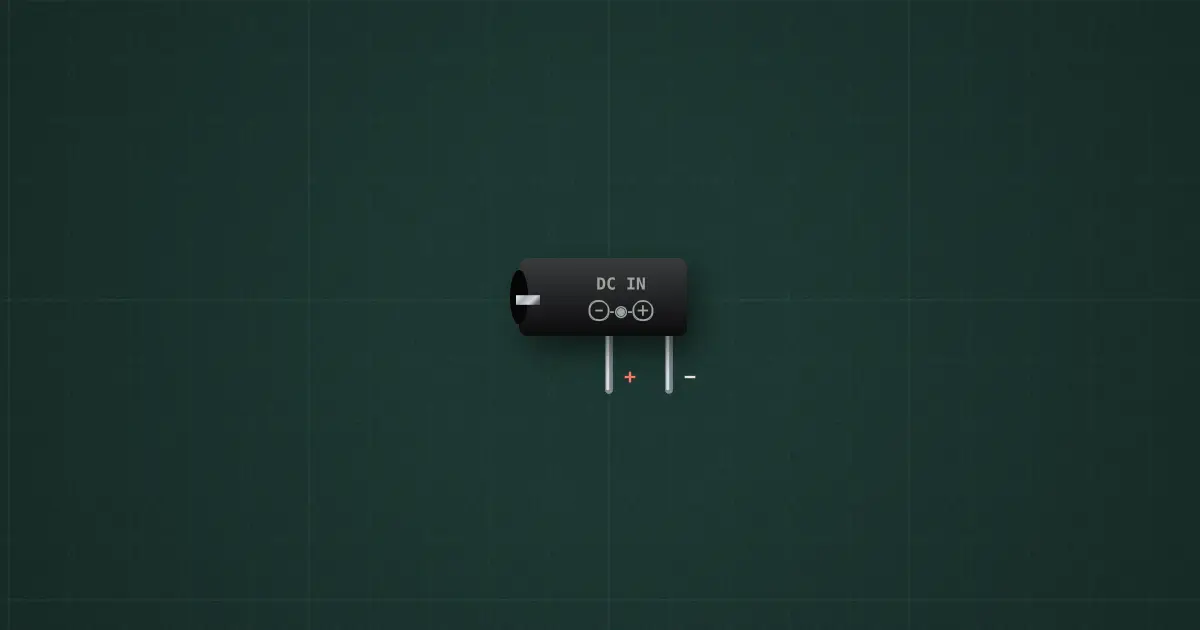

Panel / breadboard jack · 5.5 × 2.1 mm · centre pin + · 5 A
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- Socket centre
- Socket sleeve
- + (centre-pin lug)
- − (sleeve lug)
