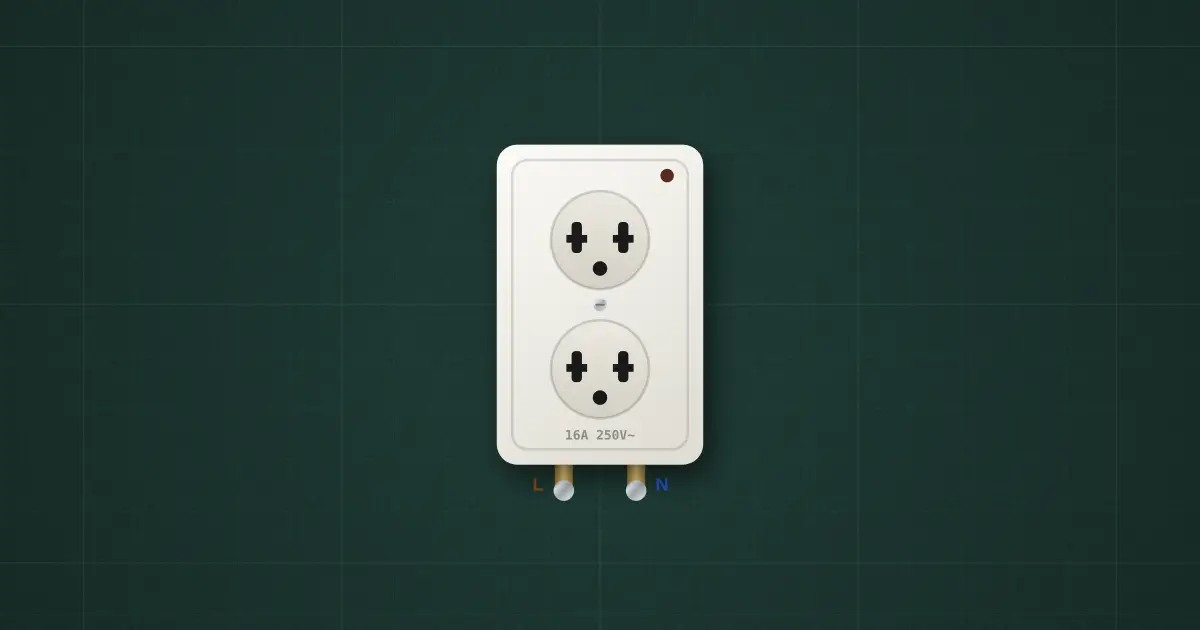

Wall outlet
Duplex universal outlet · 2 sockets on one 16 A rating · 250 V · neon indicator
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- L (line)
- N (line)
- Top L
- Top N
- Bottom L
- Bottom N
