Junction box (PH, PVC)

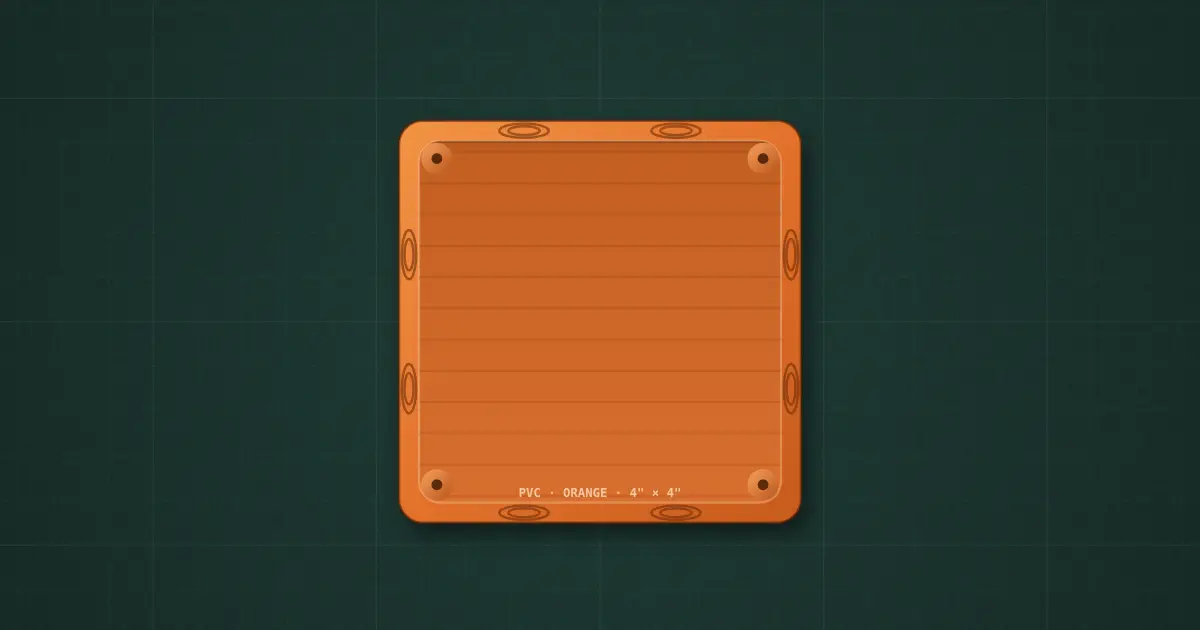

4×4 in square orange PVC junction box · empty: the wires come in through the knockouts and are spliced inside (twisted and taped, or wire connectors), then the cover goes on
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: Orange PVC junction box, 4 × 4 in square or 4 in octagonal (PH hardware standard)
Pins
none: the wires are spliced inside
Ratings and limits
| Body | flame-retardant PVC, about 100 × 100 × 50 mm |
|---|---|
| Knockouts | ½ in and ¾ in, for PVC conduit and fittings |
| Use | splices and taps; octagonal for ceiling lights, square for branch junctions |
How to use it
In a Philippine house the cable from the breaker runs in conduit to a junction box, where the wires are spliced: stripped, twisted together (pigtail) and wrapped in electrical tape, or joined with twist-on wire connectors. Every splice stays inside a box that you can reach, with its cover on (PEC).
