Electrolytic capacitor
Aluminium · 470 µF 25 V · polarised

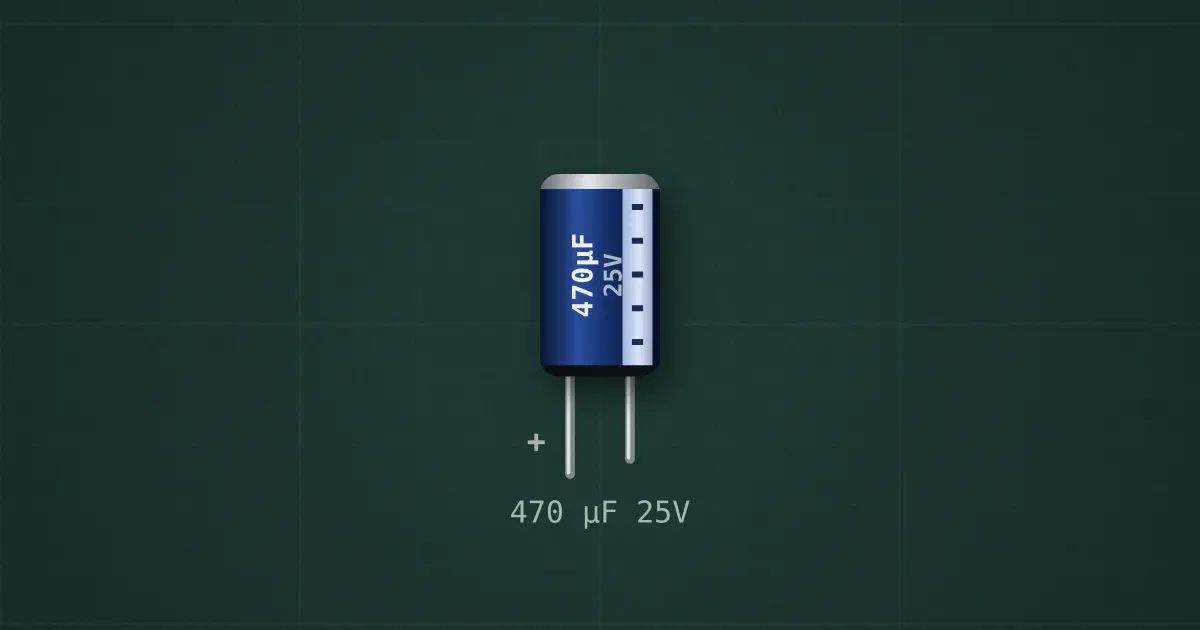

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: Aluminium electrolytic, 105 °C
Ratings and limits
| Capacitance | 470 µF ±20 % |
|---|---|
| Rated voltage | 25 V DC |
| Polarity | polarised: stripe = − |
| ESR (typical) | 115 mΩ |
How to use it
Bulk storage and ripple smoothing after a rectifier, supply decoupling. Use a voltage rating at least 1.25× the working voltage; never reverse it.
