Ceramic capacitor
X7R multilayer (MLCC) · 100 nF 50 V · non-polarised, very low ESR
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

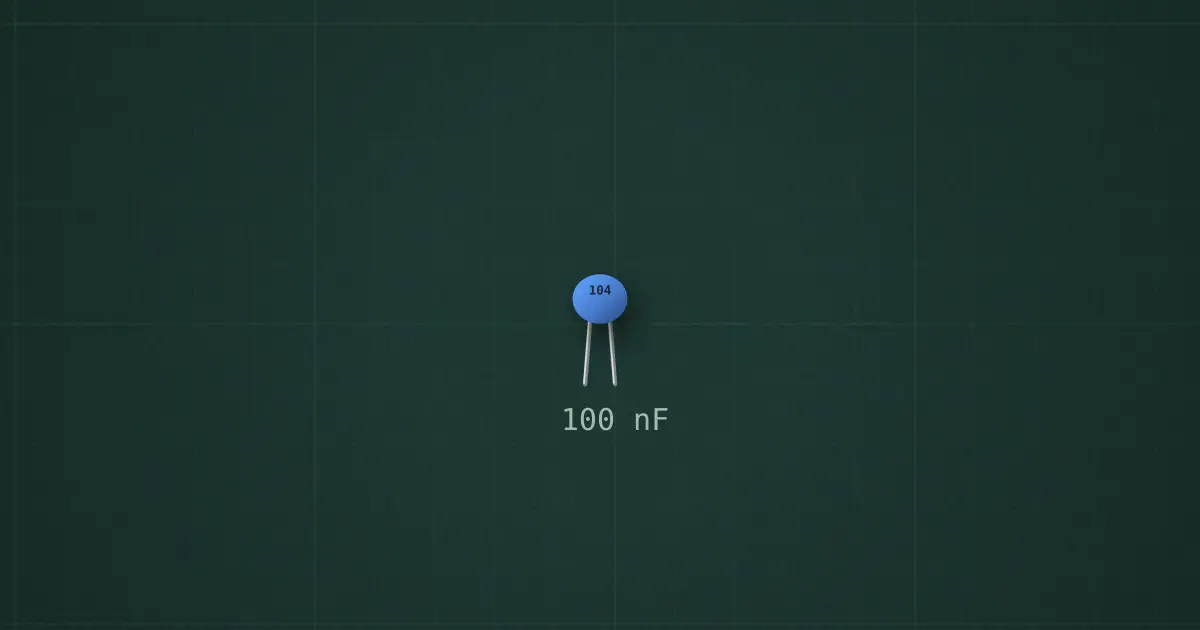

Typical part: Ceramic capacitor (MLCC / disc)
Pins
- Lead 1
- Lead 2
Ratings and limits
| Value | 100 nF (code 104) |
|---|---|
| Voltage | 50 V |
| Dielectric | X7R: loses capacitance with DC bias and temperature |
How to use it
100 nF ceramics sit right at every IC’s supply pins to supply fast current spikes (decoupling). Read the code as two digits and a number of zeros in pF: 104 = 10 × 10⁴ pF = 100 nF.
