Variable capacitor

Passive components · Tuning gang · trimmer

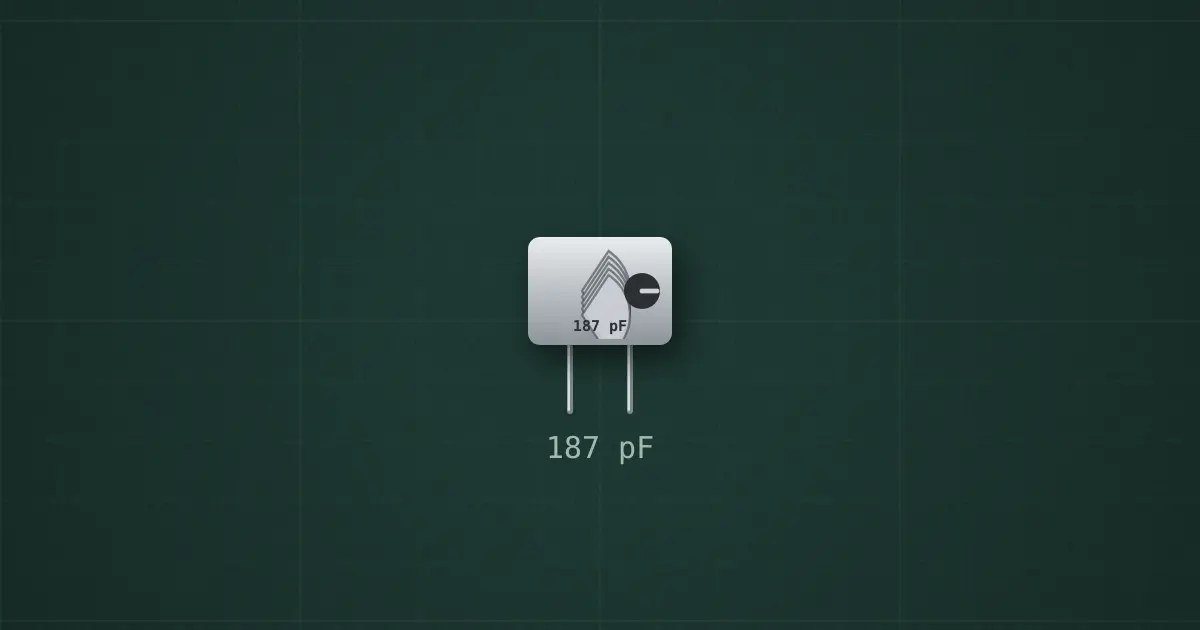

Air-dielectric tuning capacitor · 10 pF – 365 pF · now 187 pF

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• Rotor
• Stator

Ratings and limits

How to use it

With a coil it tunes a radio: f = 1 ÷ (2π√(LC)). A 365 pF gang and a 240 µH coil cover the AM broadcast band (530–1700 kHz).
