Moving-coil loudspeaker · 8 Ω · 0.5 W · voice coil ≈ 0.2 mH

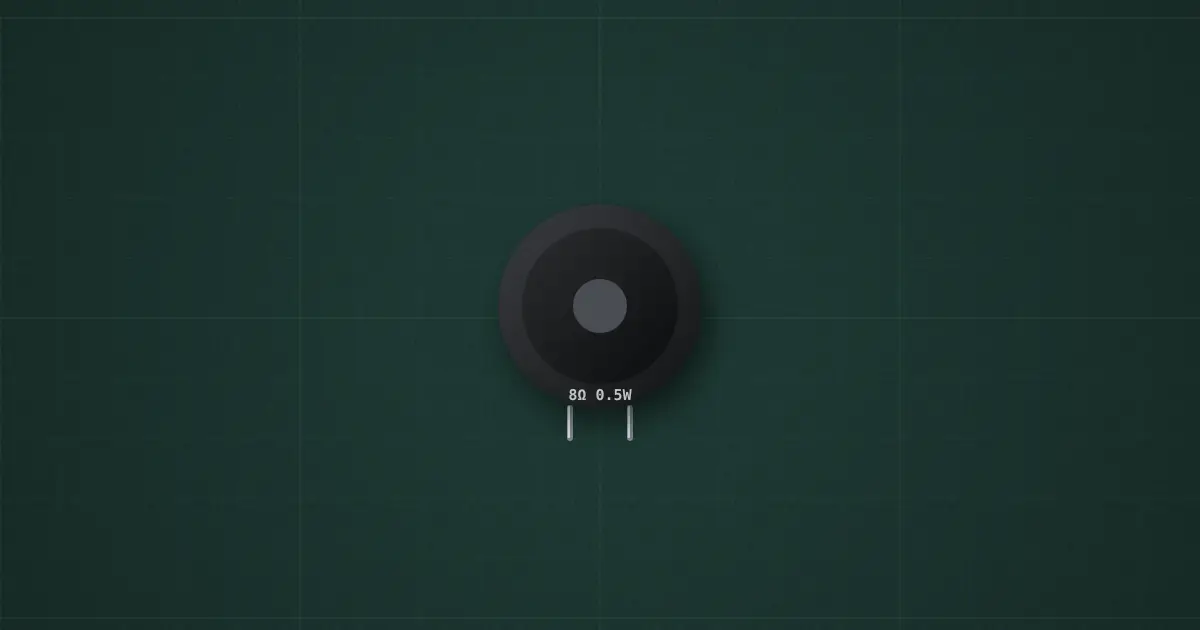

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: 8 Ω loudspeaker

Pins

• +
• −

Ratings and limits

How to use it

Driven from an amplifier through a DC-blocking capacitor; never straight from a DC rail.
