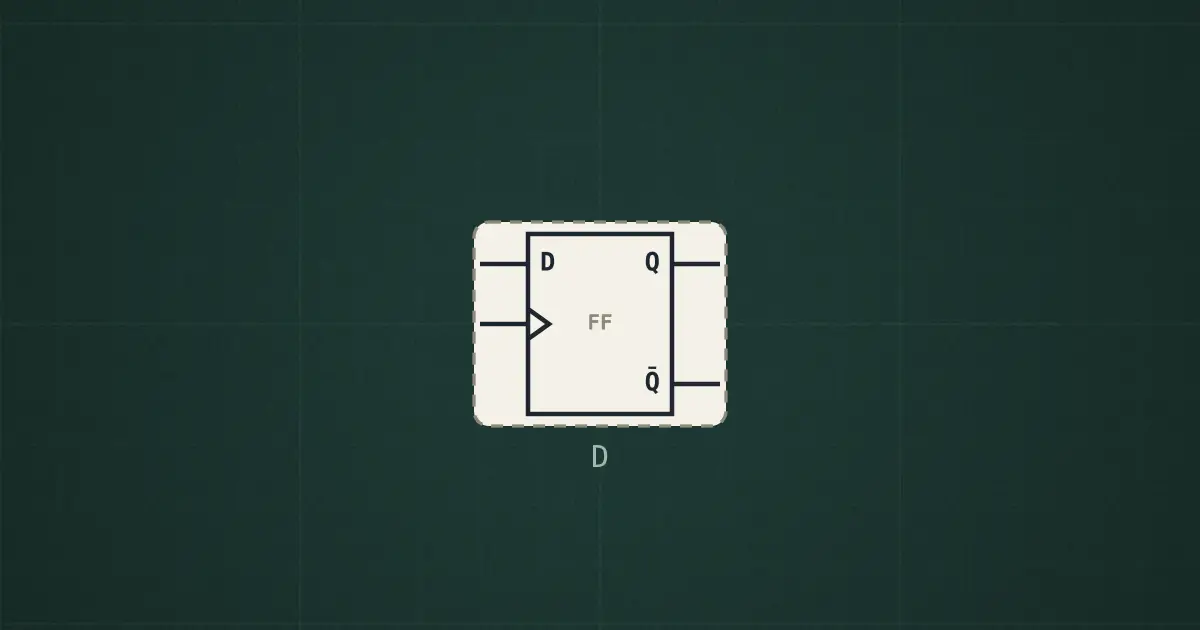

Flip-flop

Logic (ideal) · D, T or JK

Ideal D flip-flop, clocked on the rising edge: Q takes D. High is 5 V; outputs are ideal sources to ground. It needs a ground symbol on the bench.

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• D
• CLK (rising edge)
• K (JK only)
• Q
• Q̄
