8S LiFePO4 BMS
Daly 8S 60 A LiFePO4 common-port · 8S LiFePO4 · 60 A continuous, trips at about 180 A (1 ms), short circuit about 360 A (250 µs) · over-charge 3.75 V/cell (30.00 V pack), over-discharge 2.5 V/cell (20.0 V pack) · balancing 30 mA from 3.5 V
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

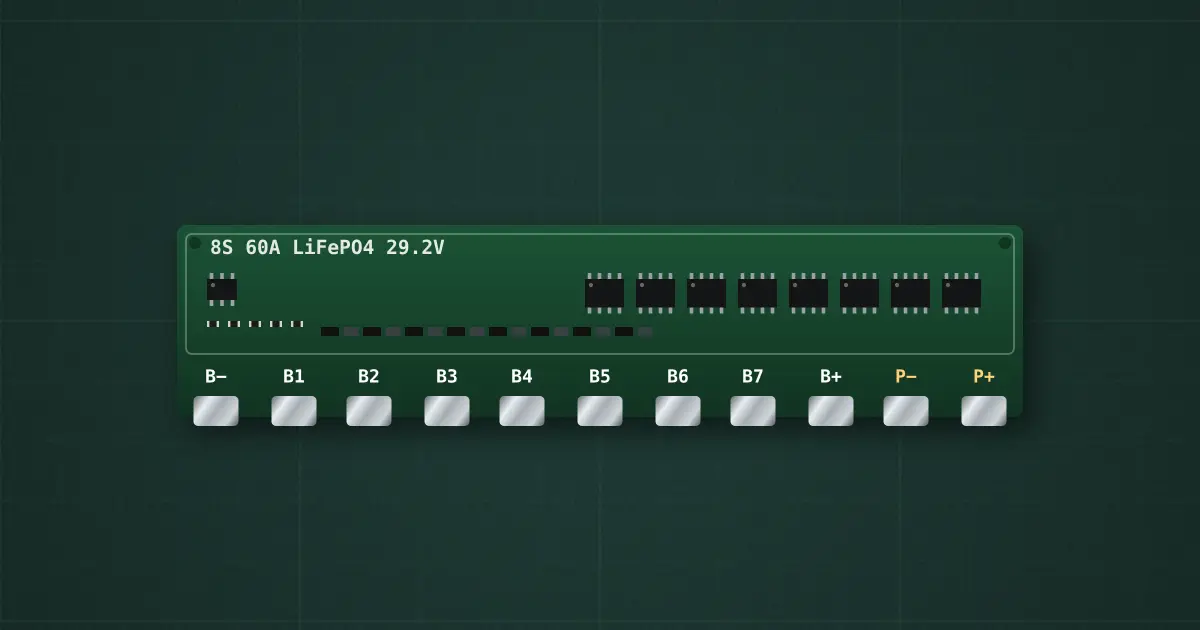

Typical part: 8S LiFePO4 BMS — modelled on Daly 8S 60 A LiFePO4 common-port
Pins
- B−
- B1
- B2
- B3
- B4
- B5
- B6
- B7
- B+
- P−
- P+
Ratings and limits
| Protection | Daly standard LiFePO4 BMS |
|---|---|
| Cells | 8S LiFePO4 |
| Over-charge | 3.75 V per cell after 1 s · release 3.65 V |
| Over-discharge | 2.5 V per cell after 1 s · release: connect a charger (or the cells recover above 2.7 V) |
| Discharge current | 60 A continuous · over-current trip about 180 A after 1 ms |
| Short circuit | about 360 A · 250 µs · release: remove the load |
| MOSFET resistance | 2.5 mΩ (150 mV and 9 W at 60 A) |
| Balancing | passive, 30 mA from 3.5 V |
| Temperature protection | none: above its continuous rating it heats, and its MOSFETs can fail shorted |
