LiFePO4 charger
LiFePO4 battery charger for 12.8 V (4S) · AC 100–240 V 50/60 Hz in · 14.6 V 10 A out (146 W) · CC/CV, stops at 1.0 A, restarts at 13.4 V · reverse-polarity and short-circuit protected · ~88 % efficient

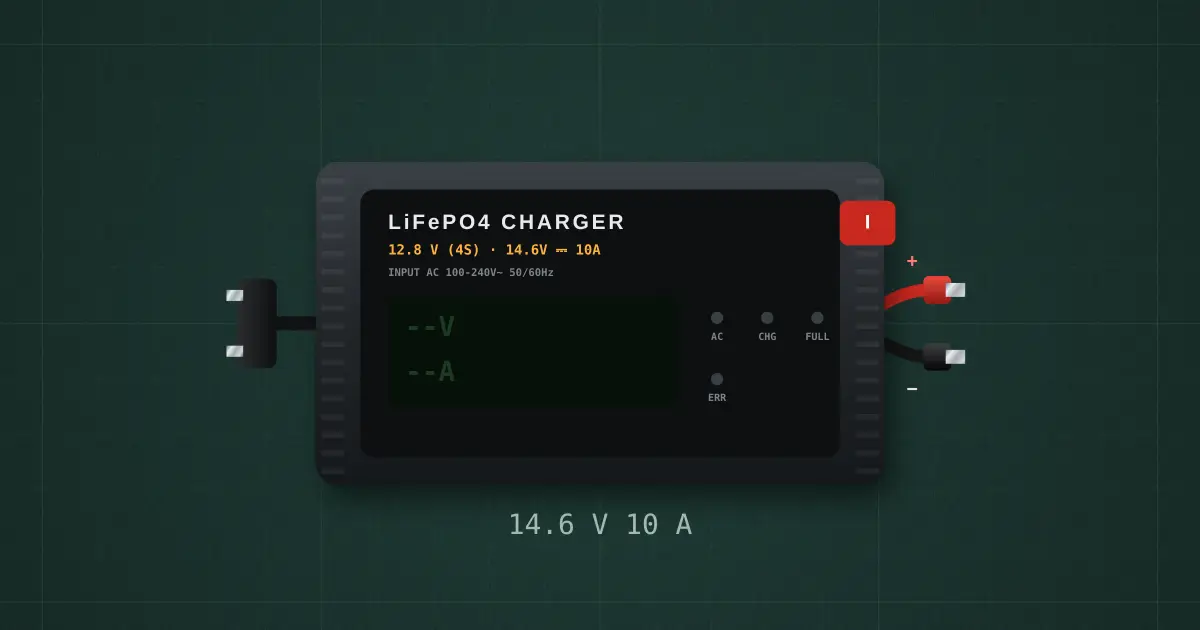

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- AC L (line)
- AC N (neutral)
- DC + (red clamp)
- DC − (black clamp)
Lessons and builds that use it
- 200 Ah power station from four 3.2 V prismatic LiFePO4 cells: 4S BMS, 2 × 12 V, 3 × USB, mains charger (build)
- 200 Ah power station on a 12.8 V LiFePO4 battery: 2 × 12 V, 3 × USB, mains charger (build)
- Home UPS on a 24 V LiFePO4 battery: charger, inverter, changeover relays, two 220 V outputs (build)
- Home UPS on 8 × 3.2 V LiFePO4 cells + BMS: charger, inverter, changeover relays, two 220 V outputs (build)
