Coupled inductors

Ideal elements (theory) · L1, L2, k

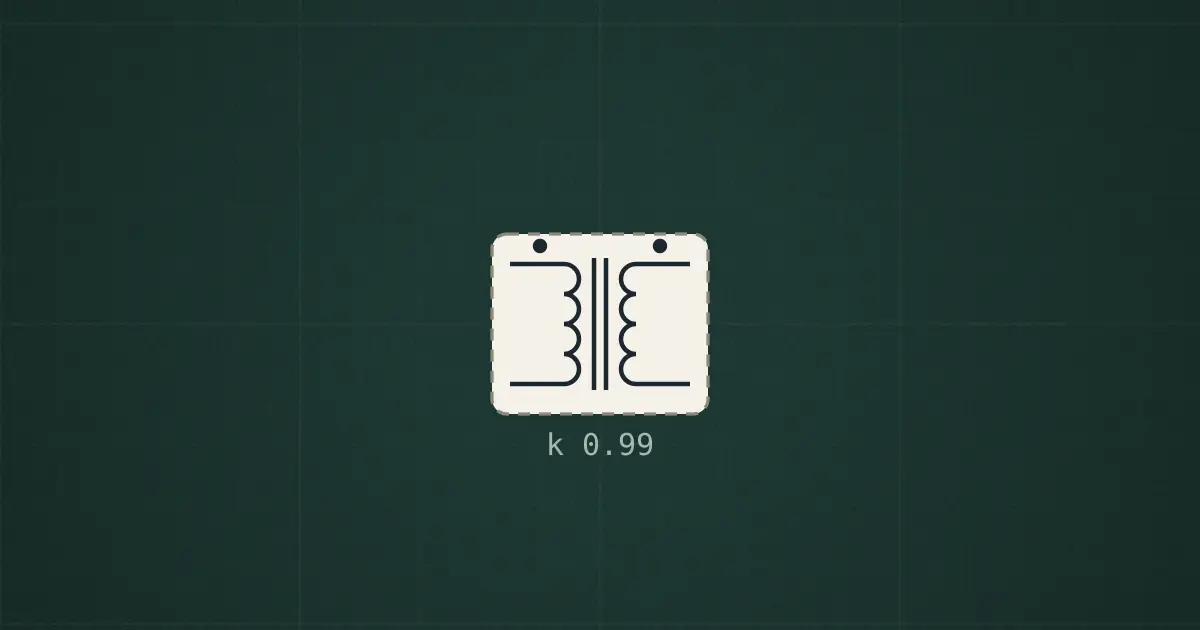

Ideal coupled inductors (SPICE K): L1 1 mH, L2 1 mH, coupling k = 0.99, mutual inductance M = 990 µH. Turns ratio about 1 : 1.00. The dots mark the ends that rise together. No resistance and no core: for a real mains transformer use the transformer part.

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• L1 • (dot)
• L1
• L2 • (dot)
• L2
