Voltage-controlled voltage source

Ideal elements (theory) · Vout = A · Vc

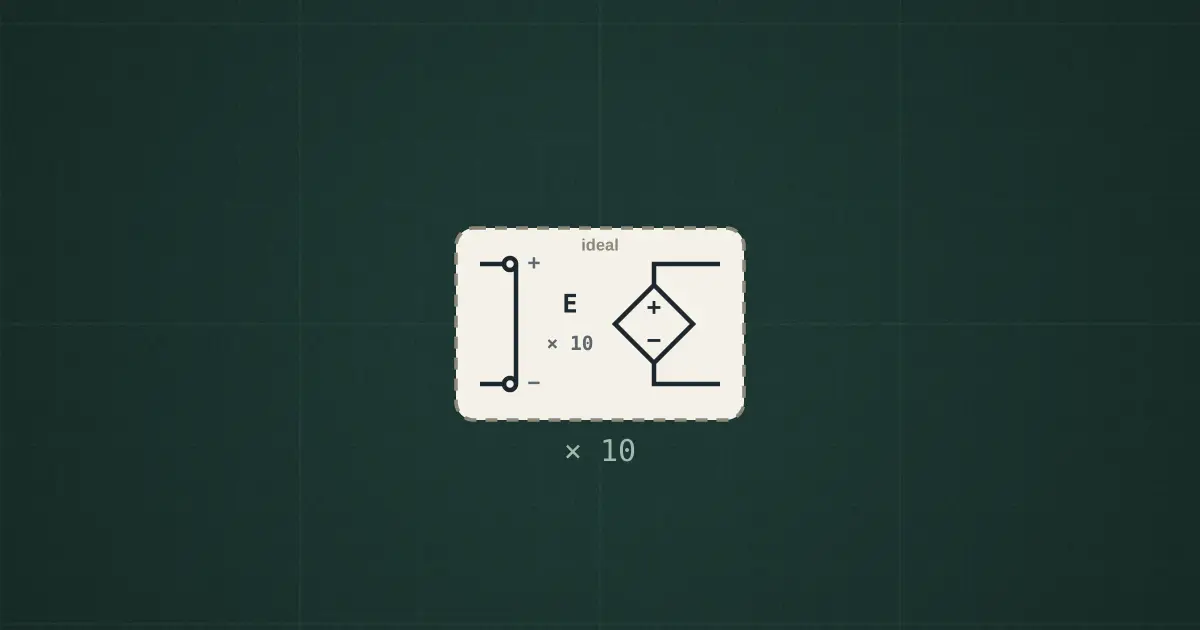

Ideal VCVS (SPICE E): V(out+ − out−) = 10 × V(control+ − control−). Infinite input impedance, zero output impedance, no limit on voltage or current. An element for circuit theory, not a part you can buy.

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• control + (senses voltage)
• control −
• out +
• out −
