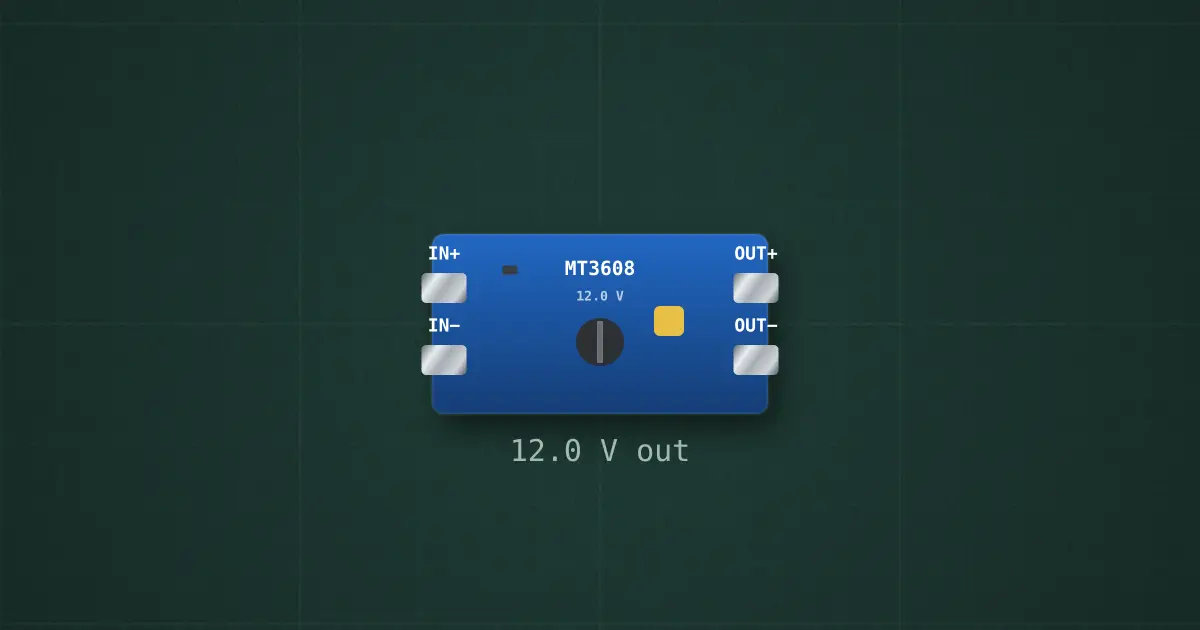

MT3608 boost module
MT3608 boost (step-up) module · in 2–24 V · out 12.0 V (5–28 V, set by the trimmer) · 2 A switch limit, so I_out ≈ I_in × V_in ÷ V_out · output follows the input minus a diode drop when set below it
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- IN+
- IN−
- OUT+
- OUT−
Ratings and limits
| Input | 2–24 V |
|---|---|
| Output | 5–28 V |
| Switch | 2 A peak |
How to use it
Steps a single Li-ion cell (3–4.2 V) up to 5 V or 12 V. Output current is less than input current by the voltage ratio.
Lessons and builds that use it
- USB power bank (build)
