Switching power supply

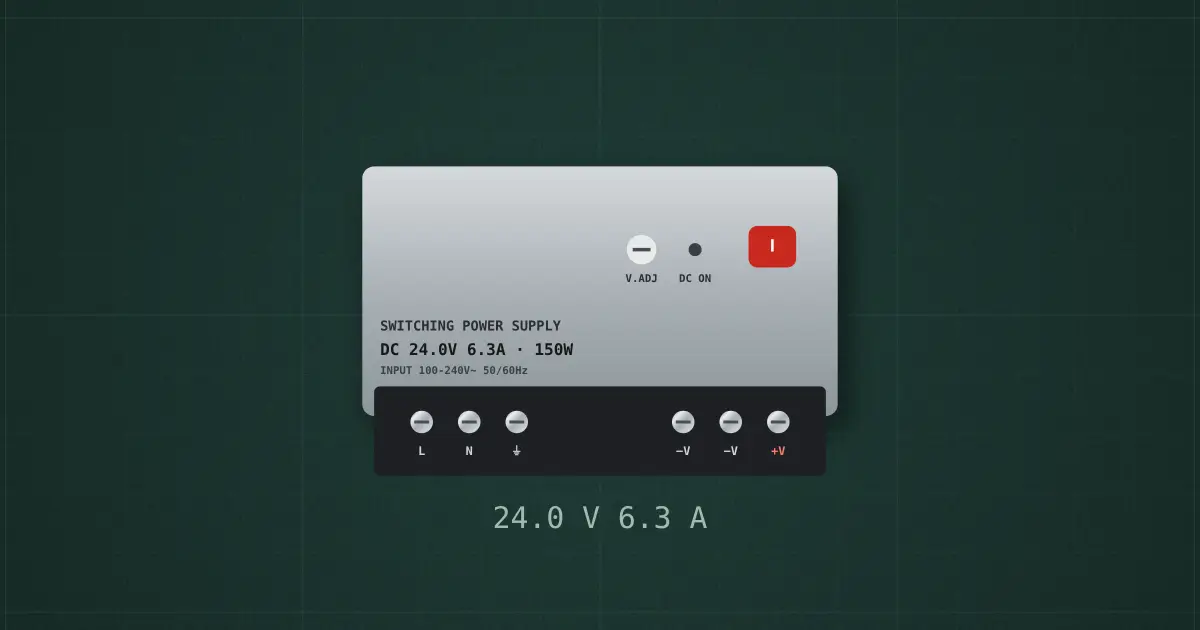

Enclosed SMPS · AC 100–240 V in · 24 V 6.3 A (150 W) out, adjustable ±10 % · over-current hiccup, short-circuit protected
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- AC L
- AC N
- V− (DC −)
- V+ (DC +)
Lessons and builds that use it
- 50 Ah 12 V LiFePO4 battery (4S9P, 32700 cells) with charger (build)
- 100 Ah 12 V LiFePO4 battery (4S17P, 32700 cells) with charger (build)
- 65 W USB-C PD stage on a ready-made 24 V supply: buck converter, PD controller, load switch (build)
- Home UPS on a 24 V LiFePO4 battery: charger, inverter, changeover relays, two 220 V outputs (build)
- Home UPS on 8 × 3.2 V LiFePO4 cells + BMS: charger, inverter, changeover relays, two 220 V outputs (build)
