Transformer

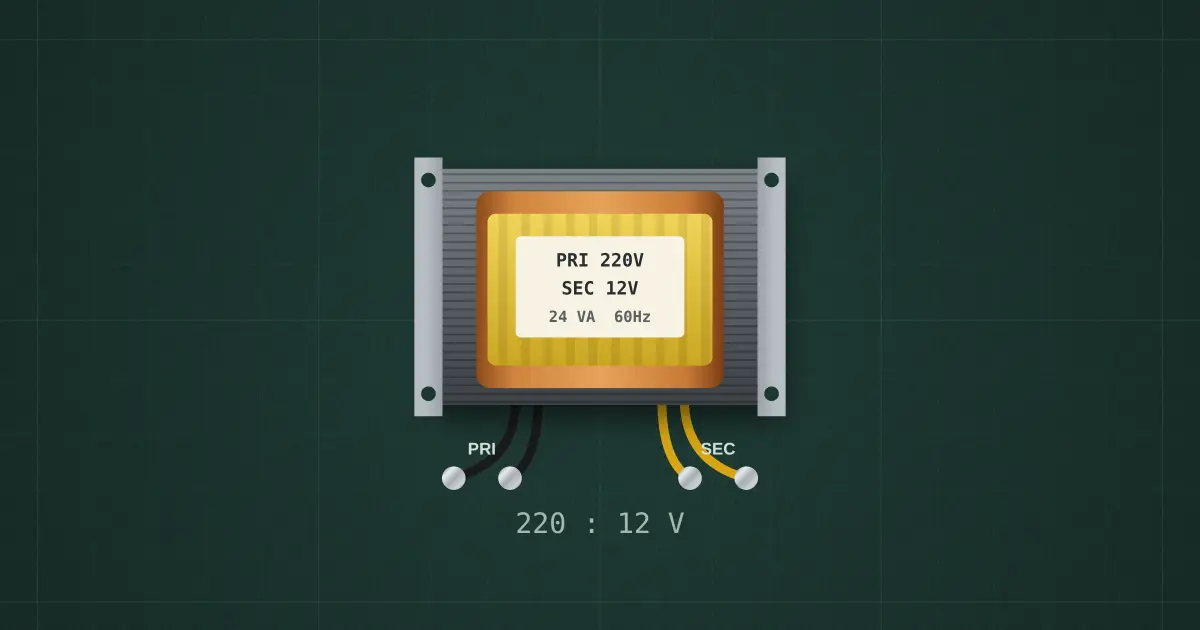

Laminated EI core · 220 V : 12 V · 24 VA · step-down · 60 Hz
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- P1 (primary)
- P2 (primary)
- S1 (secondary)
- S2 (secondary)
Lessons and builds that use it
- Basic transformer
- Linear supply: transformer, bridge, capacitor, regulator
- Split supply: ± rails for op-amps
- Fault-finding a linear supply
- Adjustable bench supply 1.25–20 V (build)
