Photodiode (BPW34)

Optoelectronics · BPW34

BPW34 PIN photodiode · about 50 µA at 1000 lux · use reverse-biased into a resistor or an op-amp (transimpedance) · 300 lux

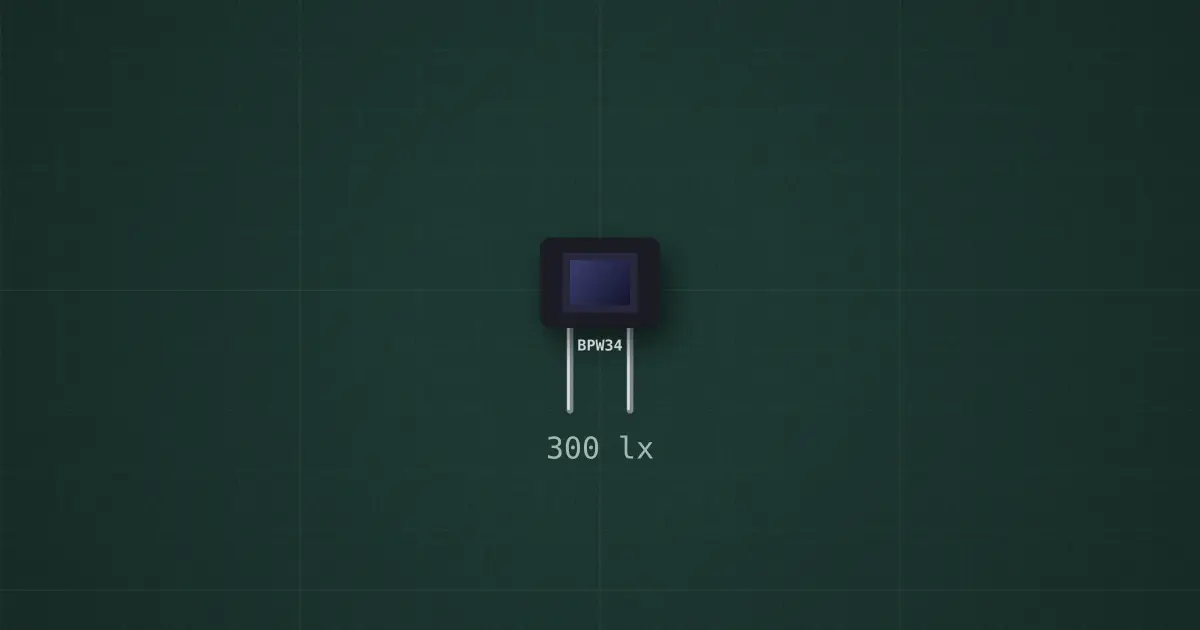

Photodiode (BPW34) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: BPW34 PIN photodiode

Pins

Ratings and limits

Sensitivity≈ 50 nA per lux (white light)
Dark current2 nA
Response100 ns

How to use it

Reverse-biased into a resistor (or a transimpedance amplifier) for a voltage proportional to light. Fast enough for light-based data.
