RGB LED

Optoelectronics · 4-lead, common cathode / anode

5 mm RGB LED · common cathode · red 1.9 V, green 2.1 V (pure green ≈ 3 V in many parts), blue 3.0 V · 20 mA per colour

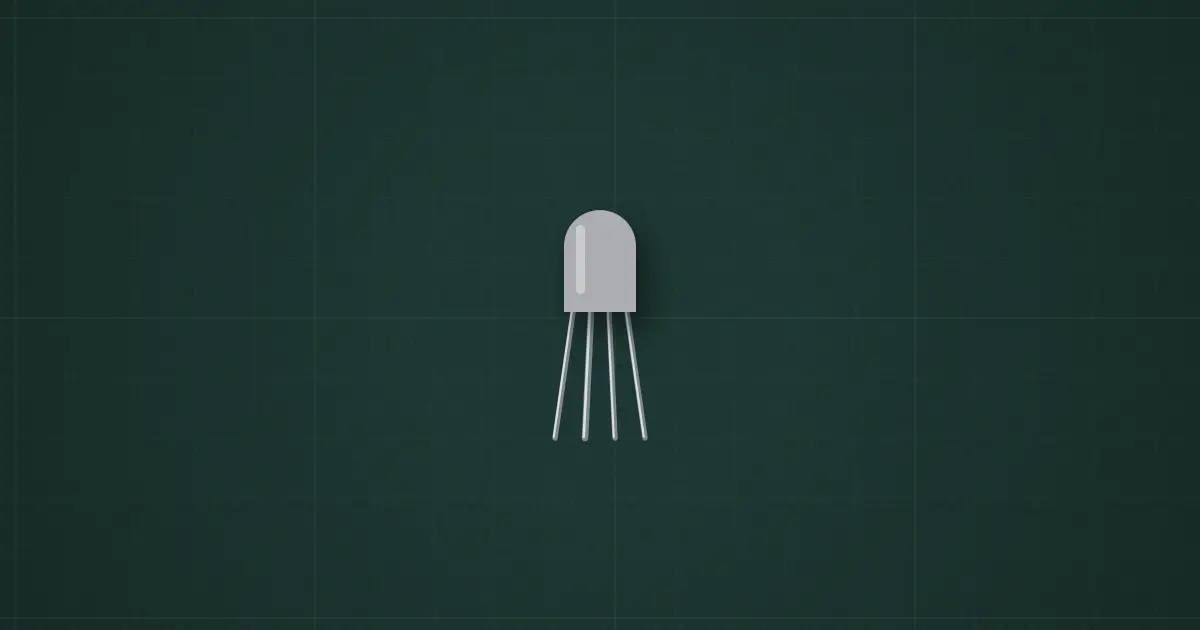

RGB LED on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: 5 mm RGB LED

Pins

Ratings and limits

Commoncathode
V_FR 1.9 / G 2.1–3.0 / B 3.0 V
Current20 mA per colour

How to use it

Three LEDs in one lens: each colour needs its own resistor. PWM each colour to mix any shade.
