Stand-fan motor (PSC)

Loads & appliances · 16-inch · 3 speeds

16-inch stand fan · permanent-split-capacitor motor, 4-pole · 220 V 60 Hz · about 55 W on high · main + auxiliary windings, taps for 3 speeds · class B (130 °C) insulation · needs its run capacitor (1.5 µF 450 V~) between H and A

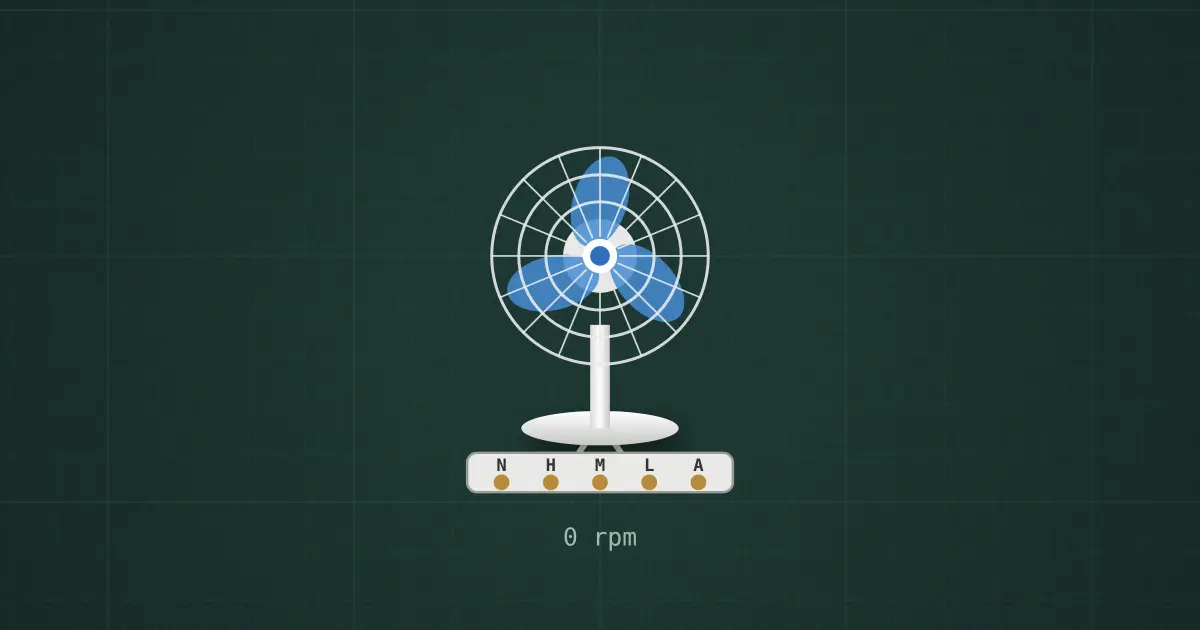

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• N (common)
• H (high tap, main winding)
• M (medium tap)
• L (low tap)
• A (auxiliary winding: to the run capacitor)
