XL6009 buck-boost module

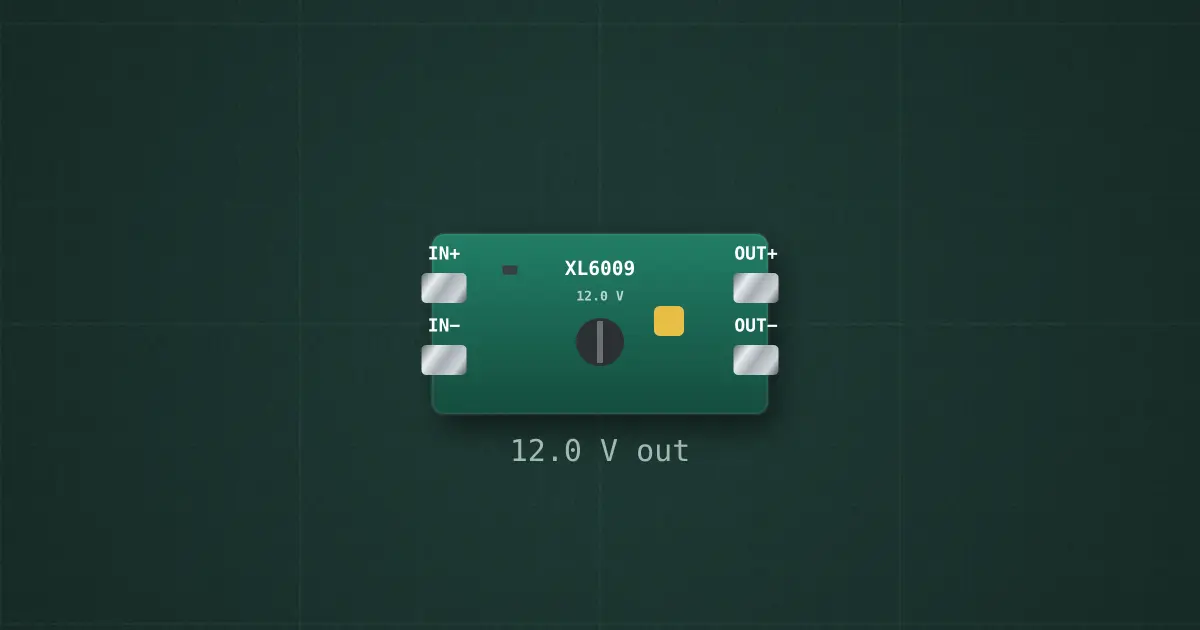

XL6009 SEPIC buck-boost module · in 5–32 V · out 12.0 V (1.25–35 V) above or below the input · 4 A switch limit · about 85 % efficient
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- IN+
- IN−
- OUT+
- OUT−
Ratings and limits
| Input | 5–32 V |
|---|---|
| Output | 1.25–35 V |
| Switch | 4 A |
How to use it
Holds a fixed output whether the input is above or below it, such as 12 V from a solar battery that swings from 10 to 14.6 V.
