D flip-flop
A D flip-flop copies its D input to Q only at the instant the clock rises, and ignores D the rest of the time. Clocked storage like this is how registers and every synchronous circuit keep step.
Open this lesson in the labFree, in your browser, no account needed.
How it works
On each rising clock edge: Q ← D. Between edges, D can change freely and Q does not care.
| CLK | D | Q next |
|---|---|---|
| ↑ | 0 | 0 |
| ↑ | 1 | 1 |
| 0, 1 or ↓ | x | Q (hold) |
Rising edges so far: 0.
Try it on the bench
- Set D to 1 (switch 1). Q does not change until you click the clock’s red PULSE button.
- Flip D back and forth without pulsing: Q ignores it.
- Click RUN on the clock module to clock it continuously, then flip D and watch Q follow on the next tick.

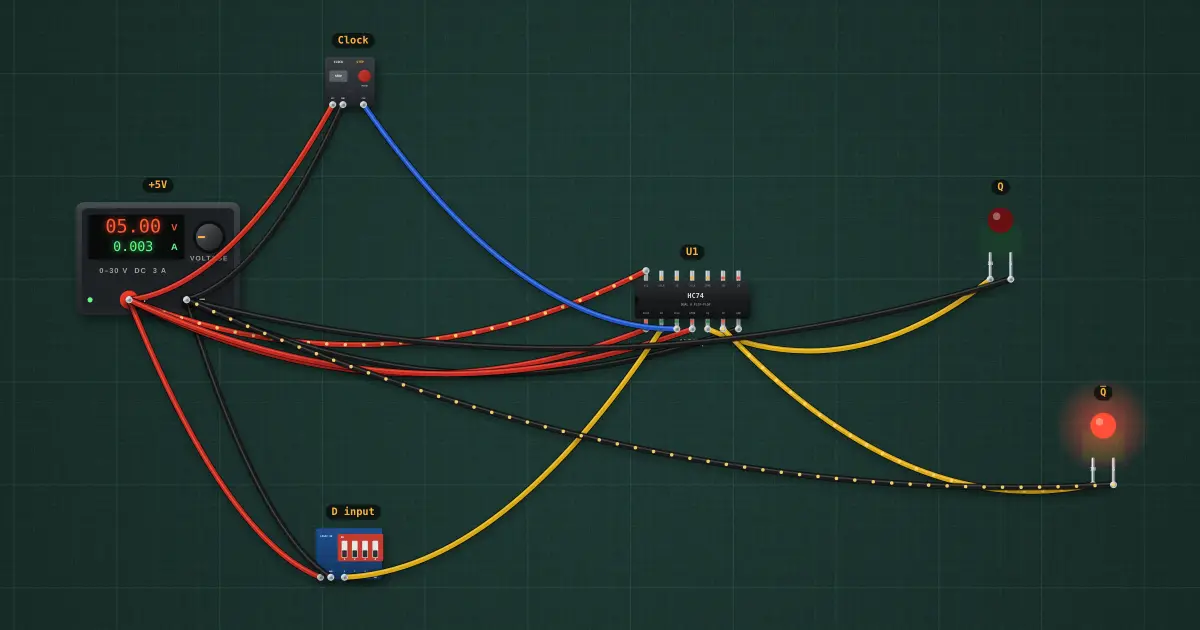

Parts on the bench
- Bench power supply
- DIP switch module
- Clock / pulse generator
- 74xx74
- 2 × Logic indicator LED
In the course
Zen’s Electronics Design Mastery, module “Digital Electronics”.
