DIP switch module

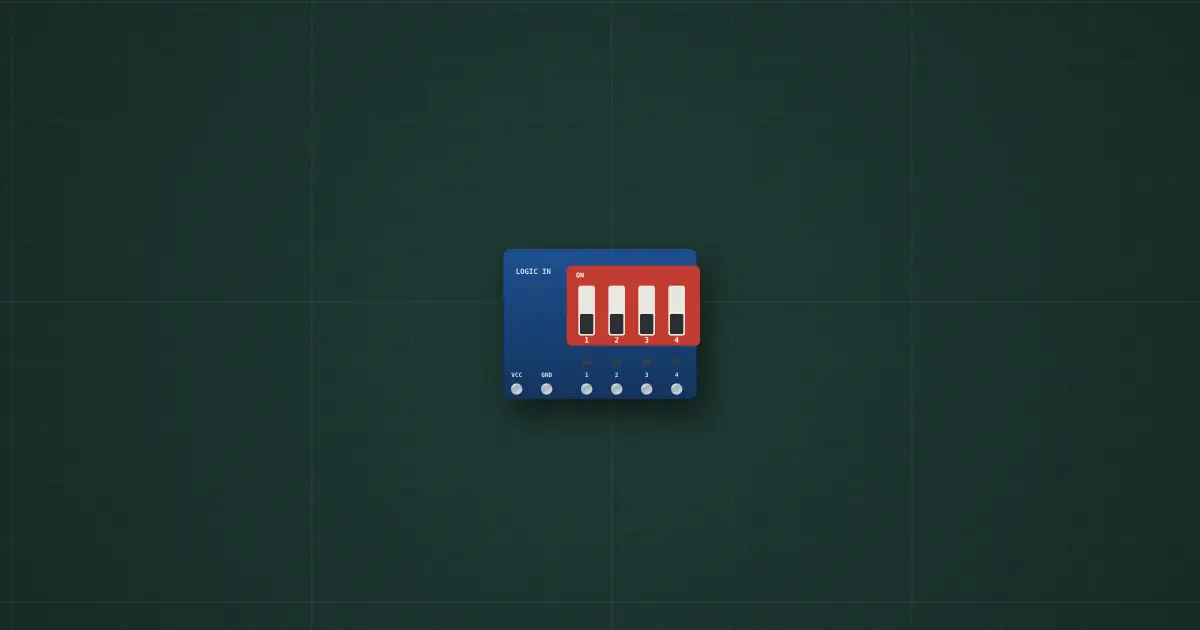

4-position DIP switch on a small board · each output tied to VCC when ON, pulled to GND by 10 kΩ when OFF · click a switch to flip it
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- VCC
- GND
- OUT 1
- OUT 2
- OUT 3
- OUT 4
Lessons and builds that use it
- AND gate
- OR gate
- NOT gate
- NAND gate
- NOR gate
- XOR gate
- NAND as a universal gate
- Half adder
- Full adder
- 2-to-1 multiplexer
- BCD decoder and 7-segment display
- SR latch (memory from two gates)
- D flip-flop
- JK flip-flop
