7-segment display

Digital logic · Common cathode

0.56" red 7-segment, common cathode · 330 Ω per segment built in · ~10 mA per segment

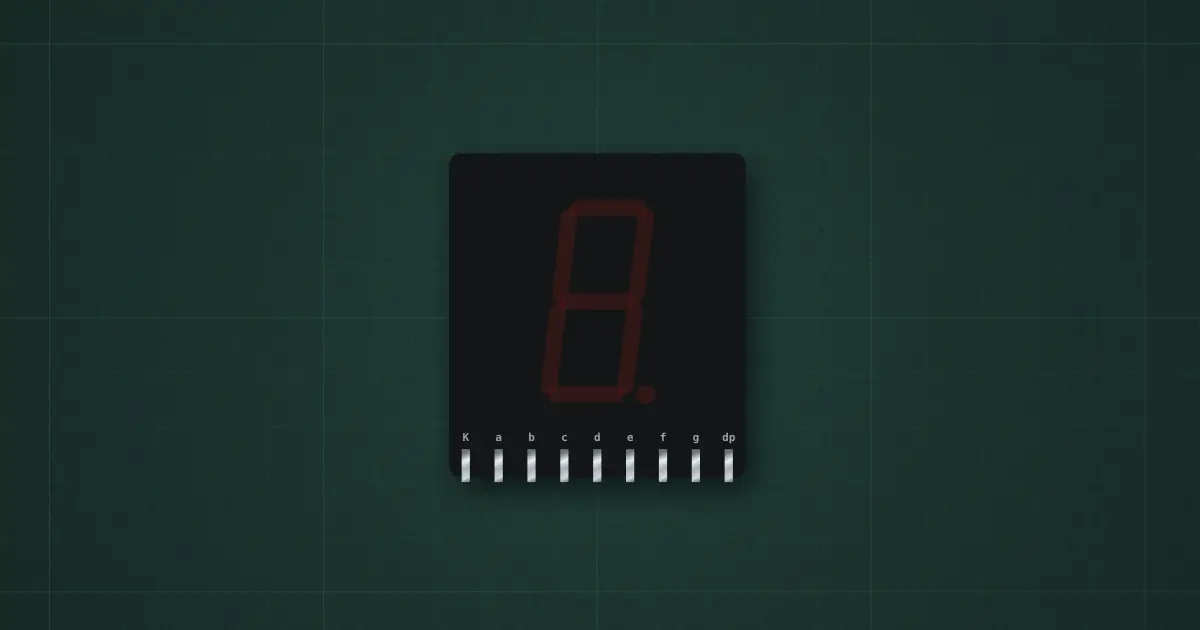

7-segment display on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

a
b
c
d
e
f
g
dp
COM (cathode)

Lessons and builds that use it

BCD decoder and 7-segment display
