74xx04 (HC04, DIP-14)

Digital logic · Hex inverter (NOT)

HC04 Hex inverter (NOT) · 74HC · CMOS · DIP-14 · VCC pin 14, GND pin 7

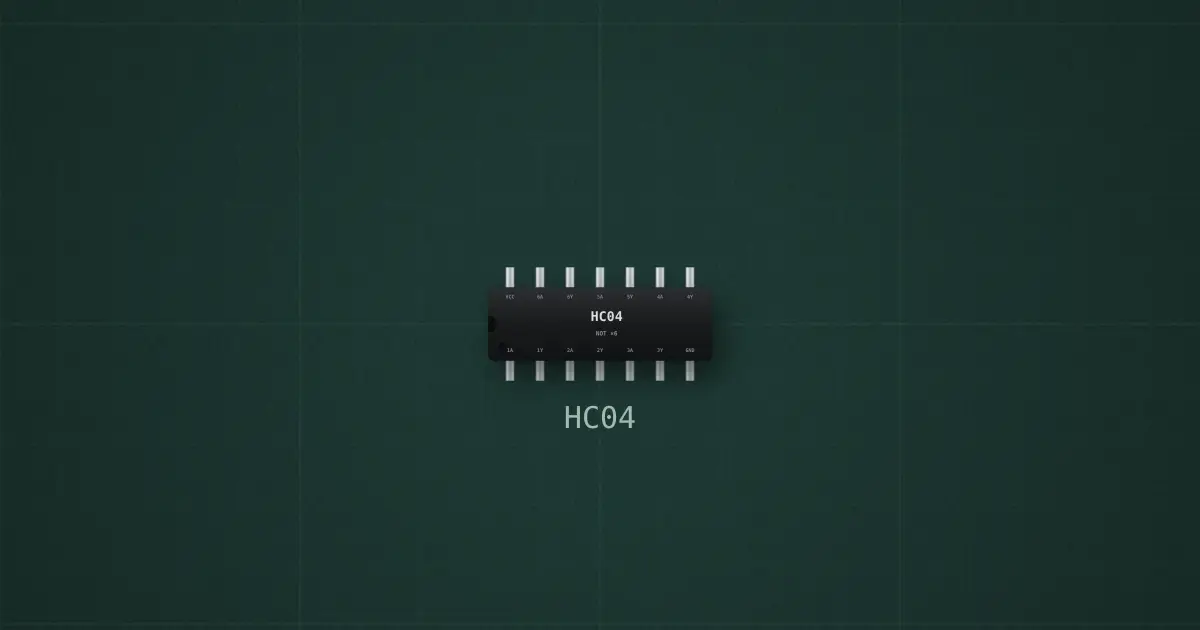

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• 1A
• 1Y
• 2A
• 2Y
• 3A
• 3Y
• GND
• 4Y
• 4A
• 5Y
• 5A
• 6Y
• 6A
• VCC
