Hex display (decoded)

Digital logic · 4-bit → 0–F

Trainer hex readout · VCC 5 V · four TTL-level inputs D0–D3 (D0 = 1s bit) · shows 0–F · inputs read high above 2 V

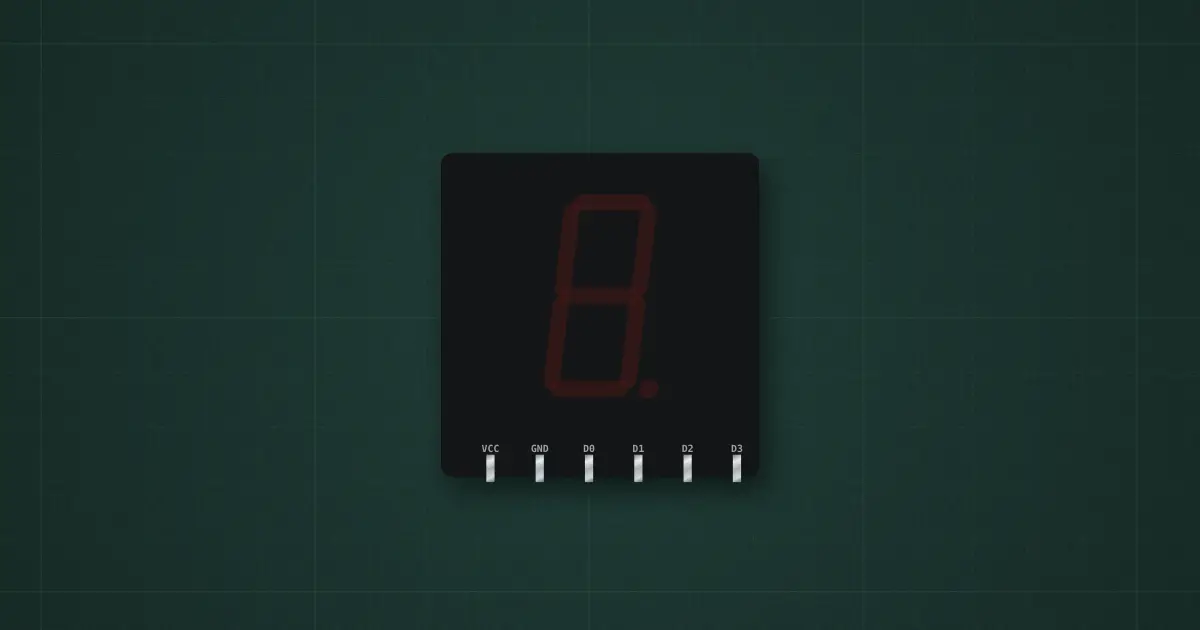

Hex display (decoded) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
