Logic probe

Digital logic · HI · LO · PULSE

Pen-style logic probe · CMOS thresholds (HI ≥ 70 %, LO ≤ 30 % of VCC) · 1 MΩ tip

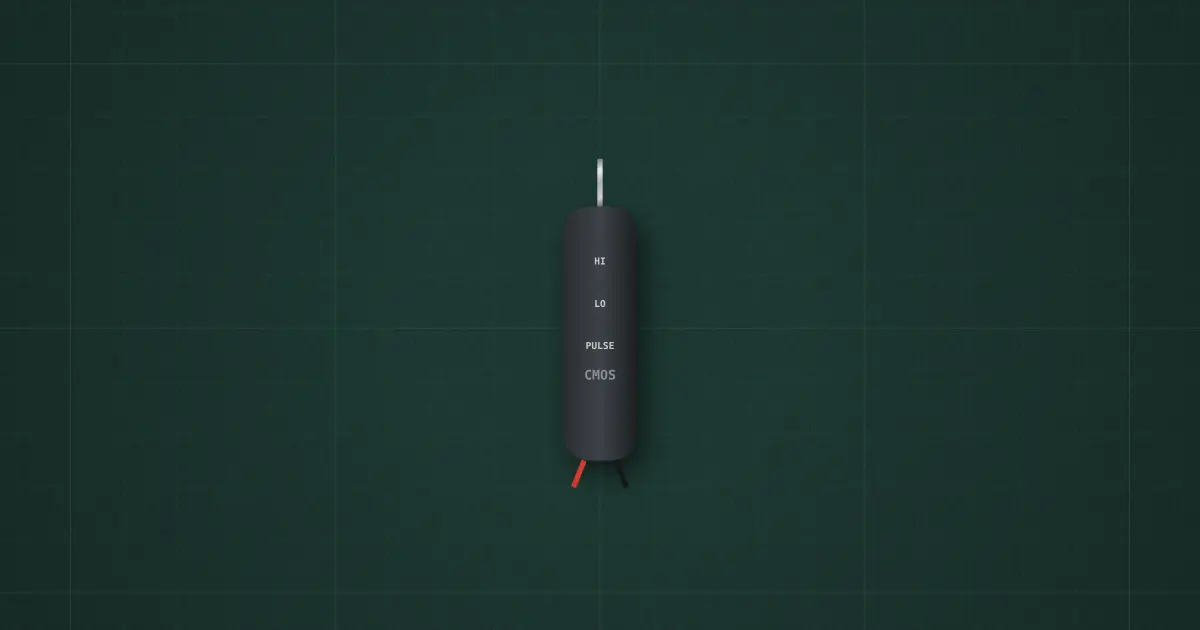

Logic probe on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

TIP
VCC (red clip)
GND (black clip)
