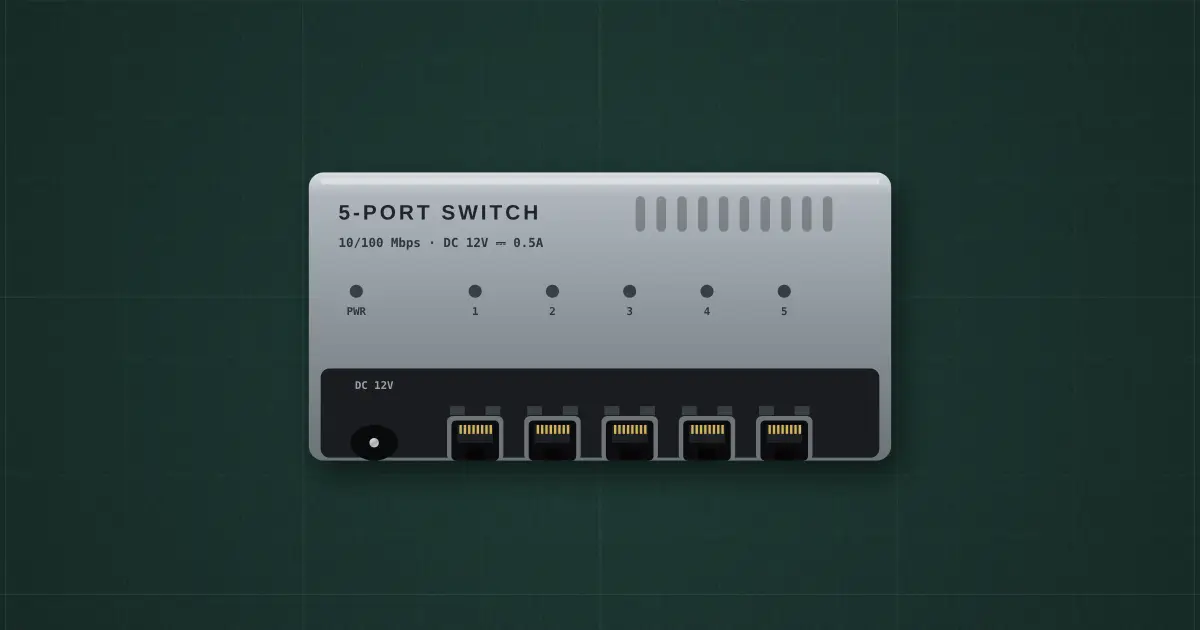

5-port network switch (RJ45)

Networking & PoE · 12 V · 5 × RJ45

Unmanaged 5-port 10/100 Ethernet switch · DC 12 V (9–15 V) 0.5 A · 5.5 × 2.1 mm jack

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• DC jack centre (+)
• DC jack sleeve (−)
• Port 1
• Port 2 (PoE when enabled)
• Port 3 (PoE when enabled)
• Port 4 (PoE when enabled)
• Port 5 (PoE when enabled)
