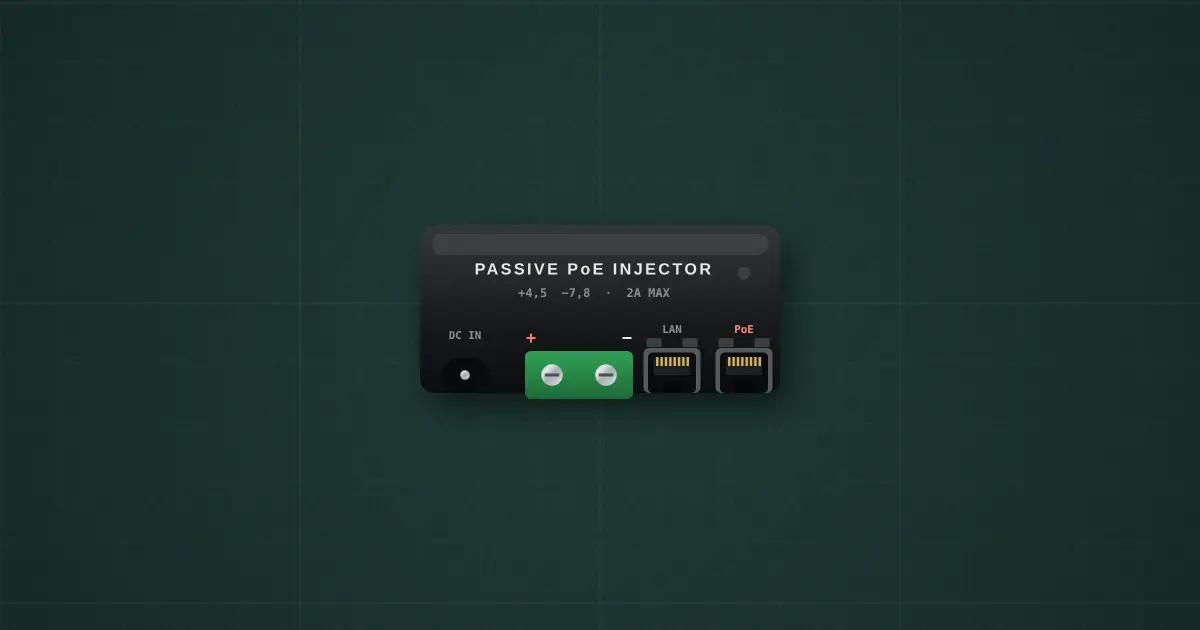

Passive PoE injector

Networking & PoE · DC → PoE

Passive PoE injector · DC in by jack or screw terminals (passes the input voltage) · + on pins 4/5, − on pins 7/8 · 2 A

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• DC jack centre (+)
• DC jack sleeve (−)
• V+ (screw)
• V− (screw)
• LAN (data in)
• PoE (power + data out)
