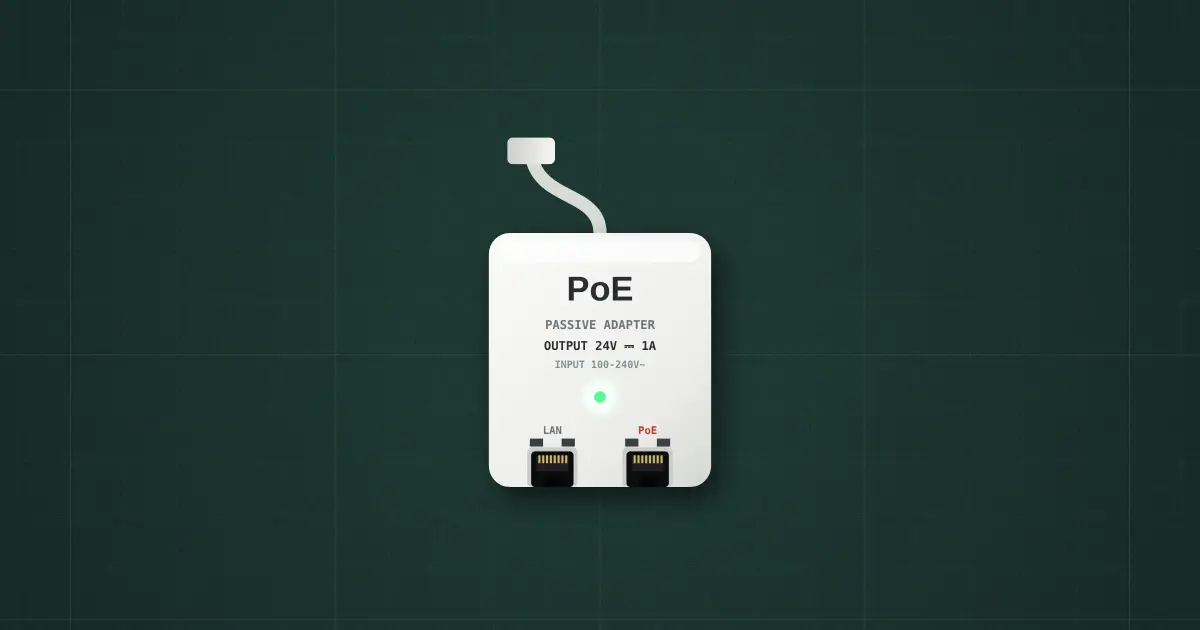

PoE adapter

Networking & PoE · Passive 12/24/48 V

Passive PoE wall adapter · 24 V 1 A · + on pins 4/5, − on pins 7/8 of the PoE port · LAN port passes data through

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• LAN (data in)
• PoE (power + data out)
