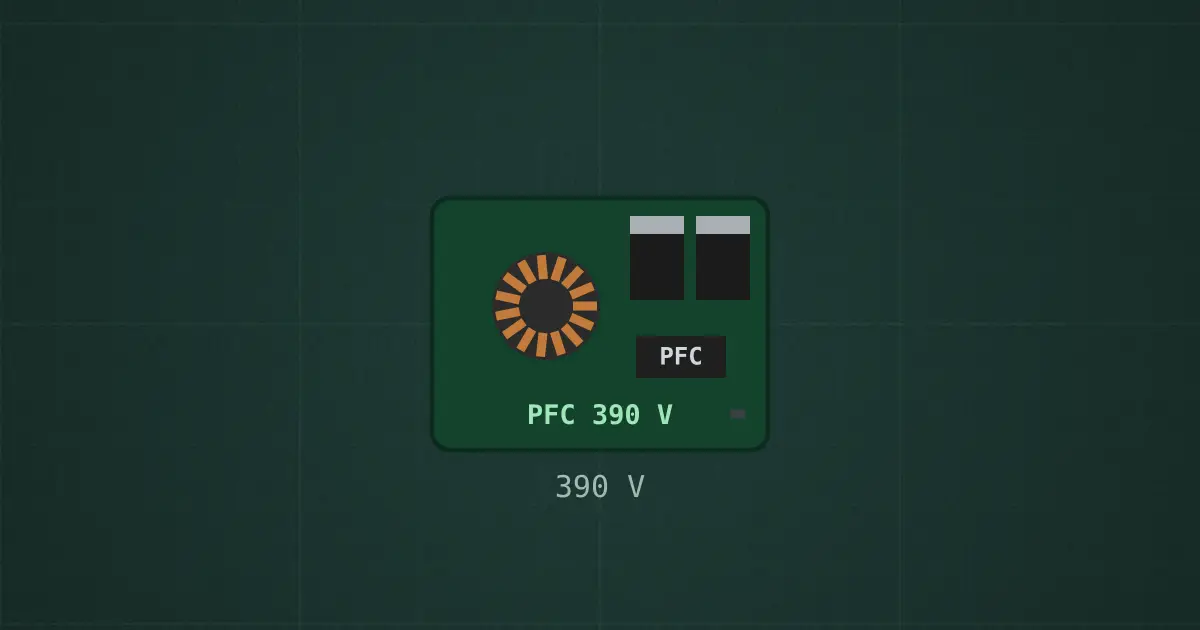

Boost PFC stage
Boost power-factor corrector (averaged) · CCM, 65 kHz · 390 V bus · up to 150 W · running
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- IN+ (from the bridge)
- IN−
- OUT+ (to the bulk capacitor)
- OUT−
