NE5532 low-noise op-amp
NE5532 dual low-noise audio op-amp · ±3 to ±20 V · open-loop gain 100k · GBW 10 MHz · slew 9 V/µs · output to within 1.5 V / 1.5 V of the rails · 38 mA short-circuit limit
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

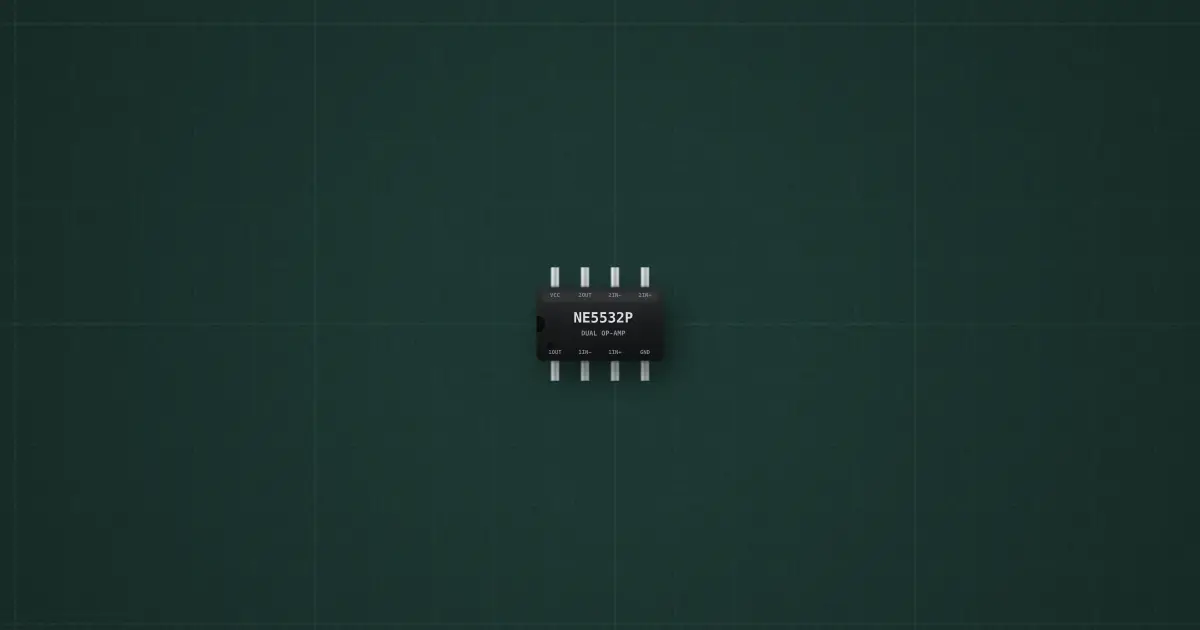

Typical part: NE5532 dual op-amp
Pins
- OUT A
- IN− A (inverting)
- IN+ A (non-inverting)
- V− / GND
- IN+ B (non-inverting)
- IN− B (inverting)
- OUT B
- V+
Ratings and limits
| Supply | ±3 to ±20 V |
|---|---|
| GBW | 10 MHz |
| Slew | 9 V/µs |
| Noise | 5 nV/√Hz |
How to use it
The workhorse of professional audio: mixers, preamps, tone controls. Needs a split or higher single supply.
