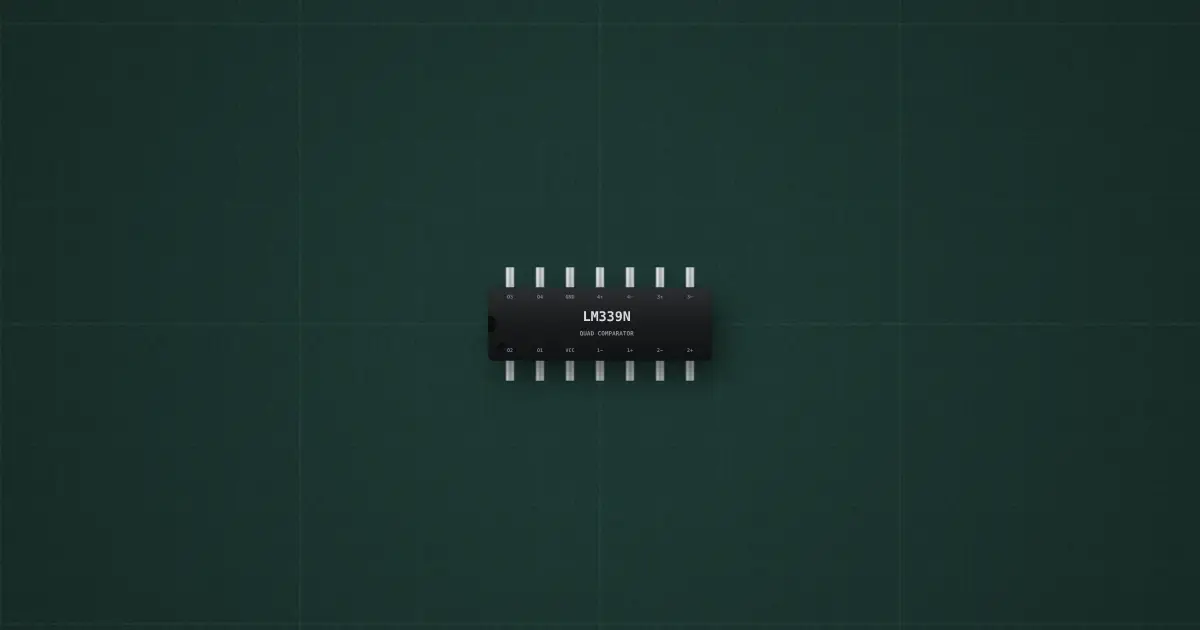

LM339 quad comparator (DIP-14)
LM339 · four comparators · 2–36 V single supply · open-collector outputs (each needs a pull-up) · sinks 16 mA
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- OUT 2
- OUT 1
- VCC
- IN1−
- IN1+
- IN2−
- IN2+
- IN3−
- IN3+
- IN4−
- IN4+
- GND
- OUT 4
- OUT 3
Ratings and limits
| Supply | 2–36 V |
|---|---|
| Outputs | open collector, sink 16 mA |
| Response | 1.3 µs |
How to use it
Four comparators in one package: battery level bars, window detectors. Each output needs a pull-up resistor.
