TL431 reference
TL431 adjustable shunt regulator · sinks whatever current (1–100 mA) keeps REF at 2.495 V above the anode · V_KA up to 36 V · set V_out = 2.495 × (1 + R1/R2)

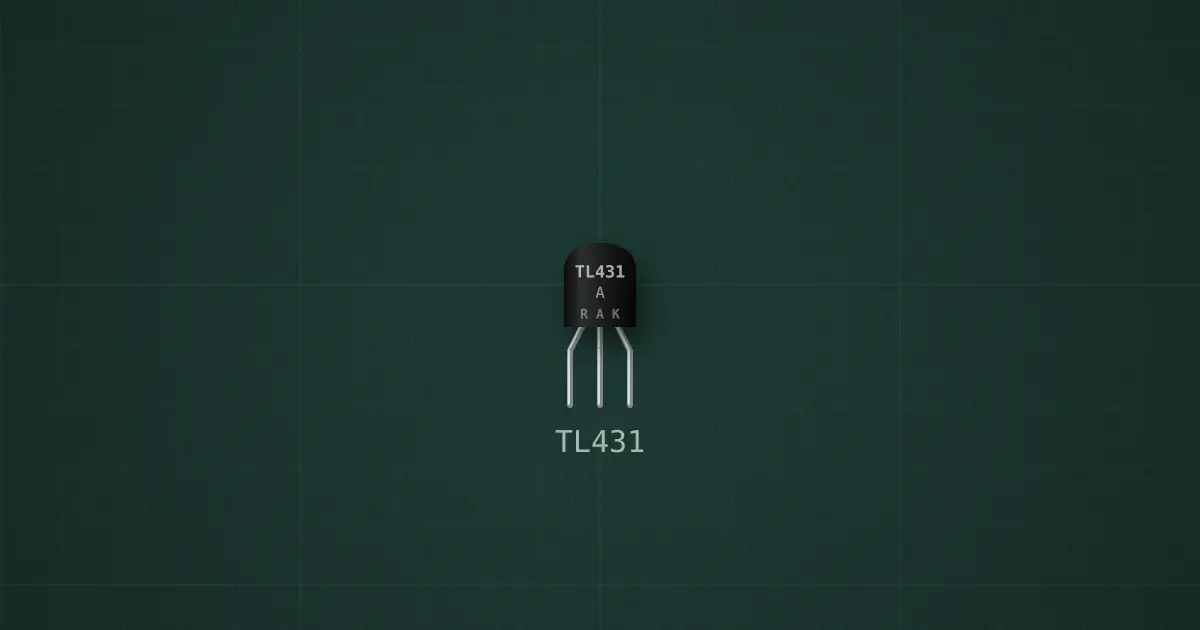

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: TL431 shunt regulator
Pins
- REF
- A (anode)
- K (cathode)
Ratings and limits
| V_REF | 2.495 V ± 1 % |
|---|---|
| I_KA | 1–100 mA |
| V_KA | up to 36 V |
How to use it
An adjustable zener: R1 from cathode to REF, R2 from REF to anode sets V = 2.495 (1 + R1/R2). Also the feedback reference in almost every switch-mode charger.
