Storage water heater
Storage water heater · 15 L tank, polyurethane insulated · 1500 W sheathed element (220 V, 32.3 Ω) · water now 28.0 °C

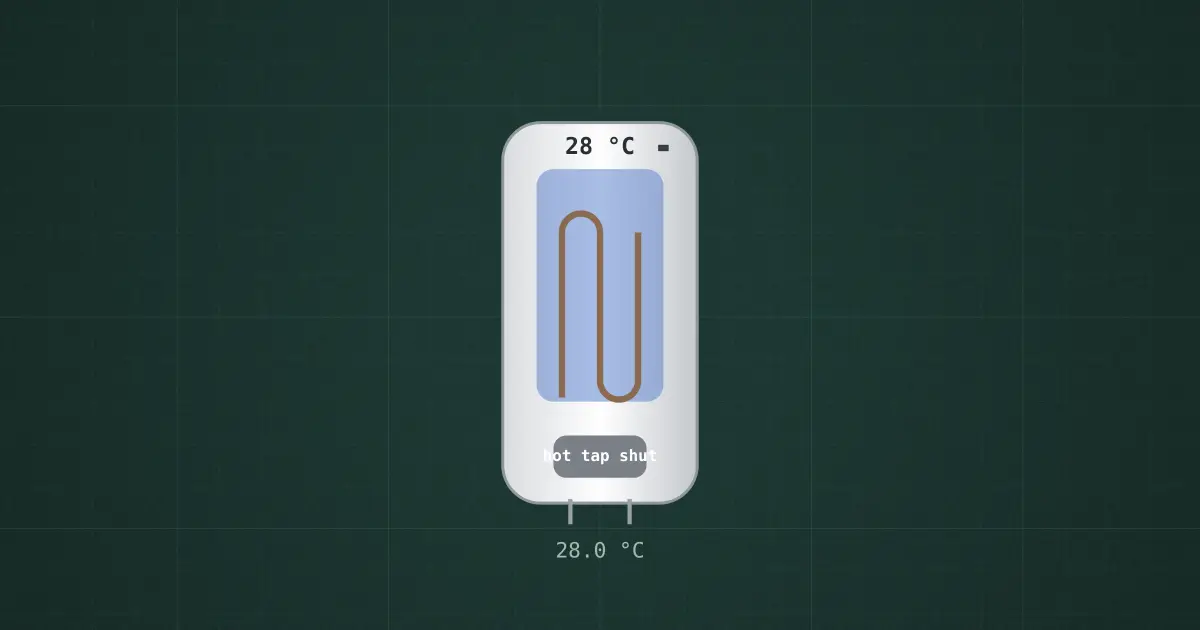

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Pins
- L (from the controls)
- N
Lessons and builds that use it
- Real device: water heater, 220 V AC to hot water (build)
- Water heater circuit: 3.5 kW on 5.5 mm² and a 30 A breaker (build)
