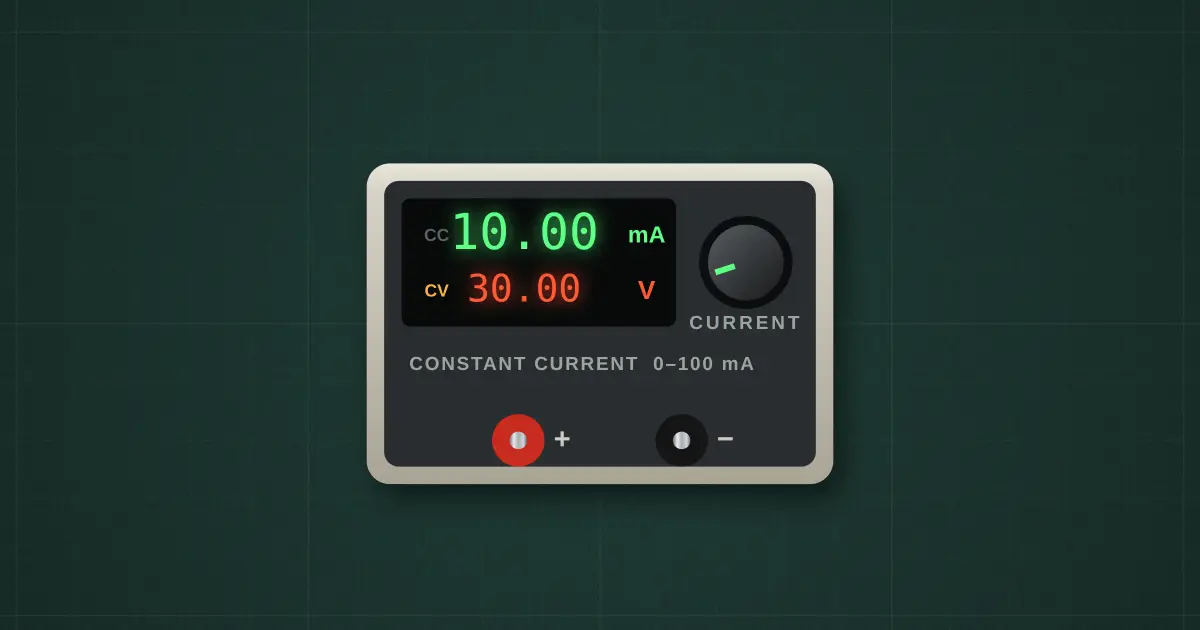

Current source

Power sources · 0–100 mA

Constant-current source · 10 mA · compliance 30 V

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• + (current out)
• −

Lessons and builds that use it

• Norton equivalent
• BJT current gain (β)
