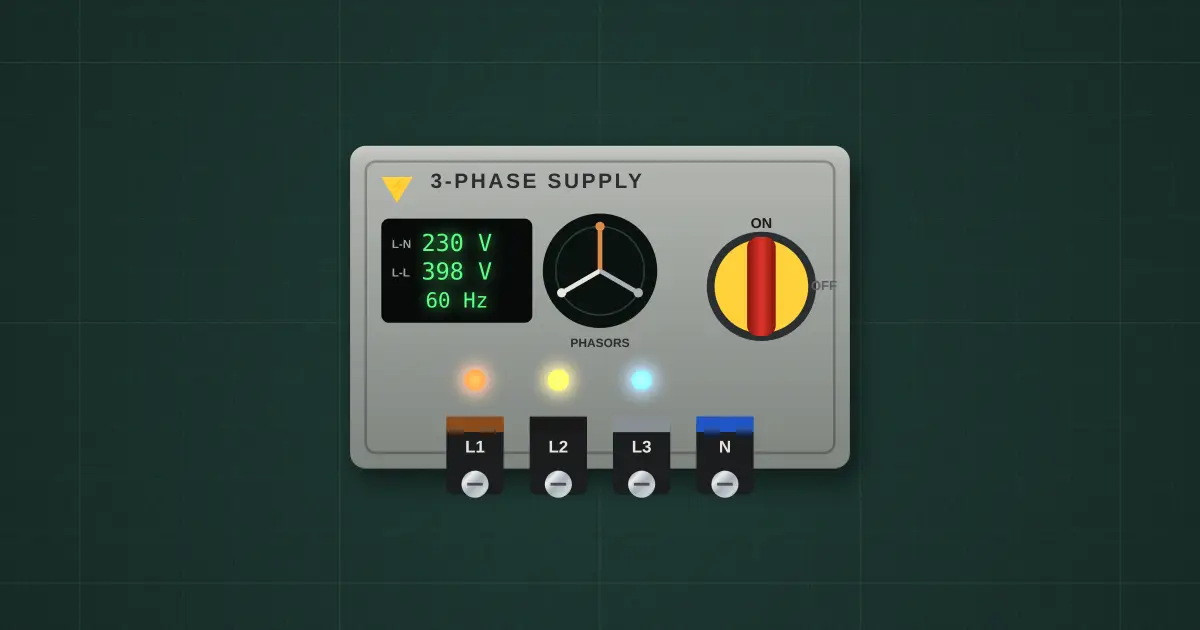

Three-phase supply

Power sources · 3φ 4-wire

3-phase 4-wire · 230/400 V · 60 Hz · sequence L1-L2-L3 · 20 A per phase

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• L1
• L2
• L3
• N

Lessons and builds that use it

• Three-phase star (Y)
• Three-phase delta (Δ)
