LiFePO4 prismatic cell 105 Ah (LF105)

Batteries & cells · 3.2 V 105 Ah

LiFePO4 prismatic · 3.2 V nominal · 105000 mAh · 60% charged

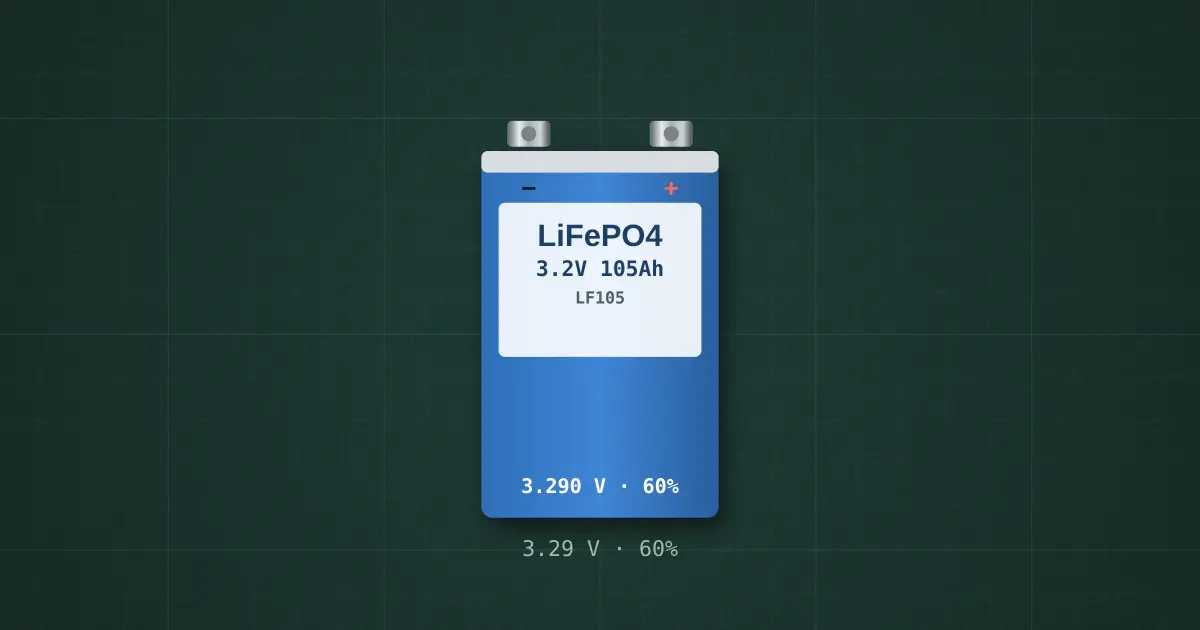

LiFePO4 prismatic cell 105 Ah (LF105) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: Prismatic LiFePO4 cell, 105 Ah (EVE LF105 class)

Pins

Ratings and limits

Voltage2.5–3.65 V, 3.2 V nominal
Capacity105 Ah · 336 Wh
Internal resistance≈ 0.5 mΩ
Discharge105 A continuous (1 C), 200 A peak
ChargeCC/CV to 3.6 V at ≤ 0.5 C · 0–45 °C
Cycle life≈ 4000 cycles to 80 %

How to use it

The standard cell for DIY 12 / 24 / 48 V solar batteries: 4S = 12.8 V 100 Ah, 8S = 24 V, 16S = 48 V. Busbars, BMS on the negative, fuse on the positive.
