LiFePO4 prismatic cell

Batteries & cells · 3.2 V · 100–280 Ah

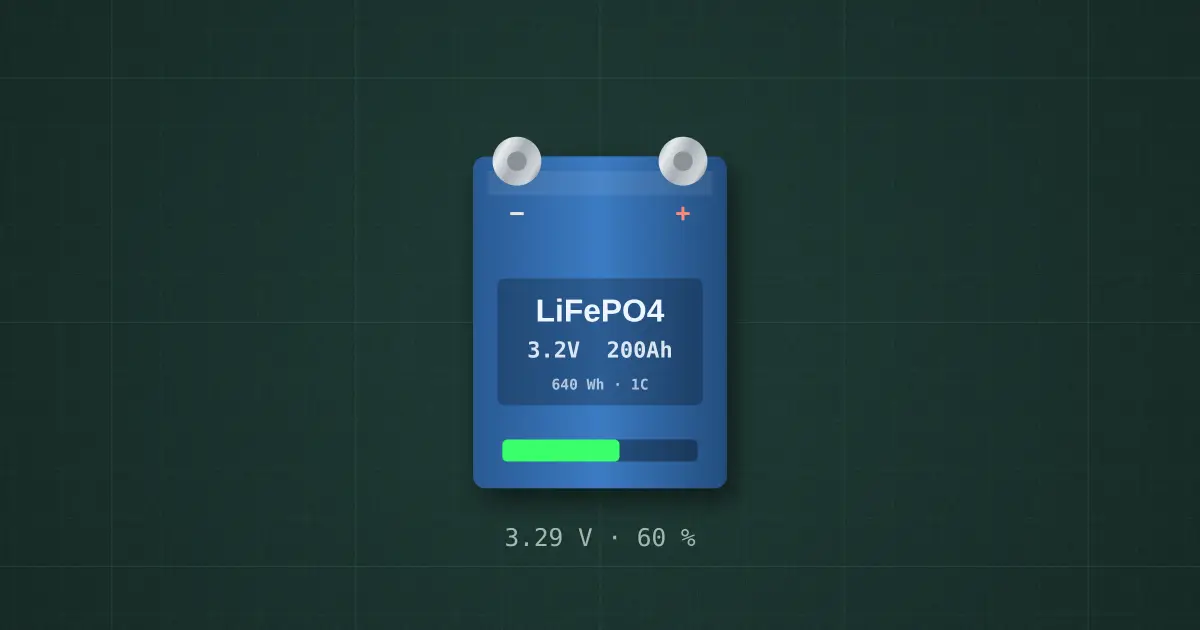

Prismatic LiFePO4 cell (aluminium can, M6 stud terminals) · 3.2 V nominal, 2.5–3.65 V · 200 Ah (640 Wh) · 1 C continuous (200 A) · 60 % charged · no protection of its own: always behind a BMS

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Pins

• −
• +

Lessons and builds that use it

• 200 Ah power station from four 3.2 V prismatic LiFePO4 cells: 4S BMS, 2 × 12 V, 3 × USB, mains charger (build)
• Home UPS on 8 × 3.2 V LiFePO4 cells + BMS: charger, inverter, changeover relays, two 220 V outputs (build)
