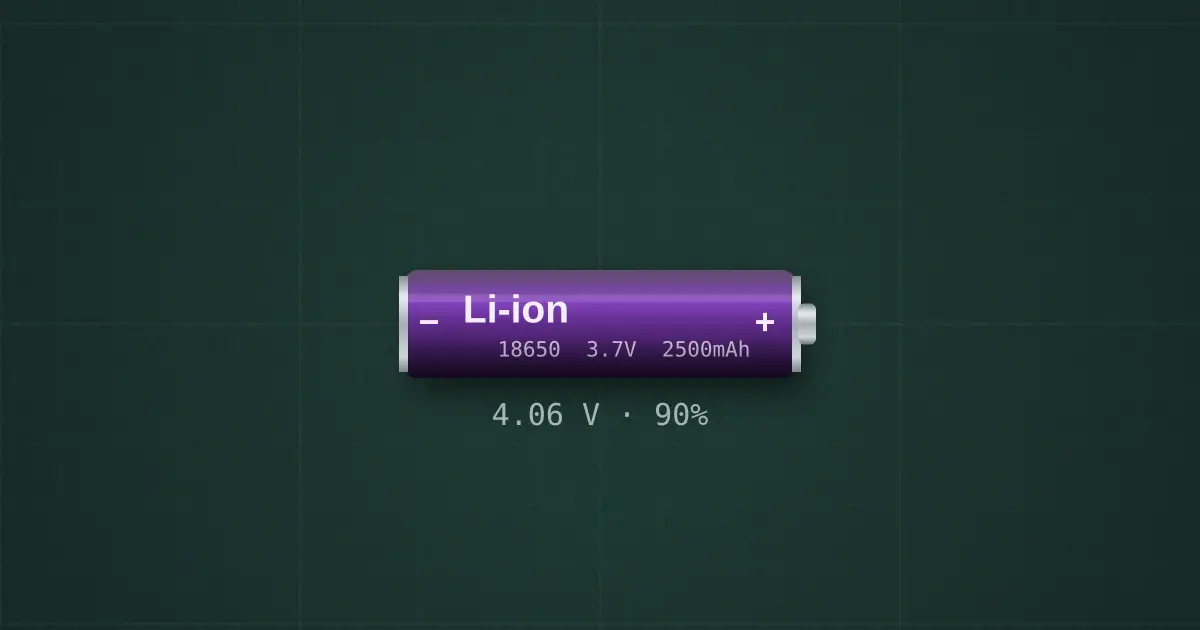

18650 Li-ion cell
Li-ion NMC · 3.7 V nominal · 2500 mAh · 90% charged
Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.
Typical part: 18650 Li-ion (NMC)
Ratings and limits
| Voltage | 2.5–4.2 V, 3.6–3.7 V nominal |
|---|---|
| Capacity | 2500 mAh typical |
| Charge | CC/CV to 4.2 V at ≤ 0.5–1 C |
How to use it
Packs for portable gear, always with a BMS or protection board.
