LiFePO4 prismatic cell 50 Ah (LF50K)

Batteries & cells · 3.2 V 50 Ah

LiFePO4 prismatic · 3.2 V nominal · 50000 mAh · 60% charged

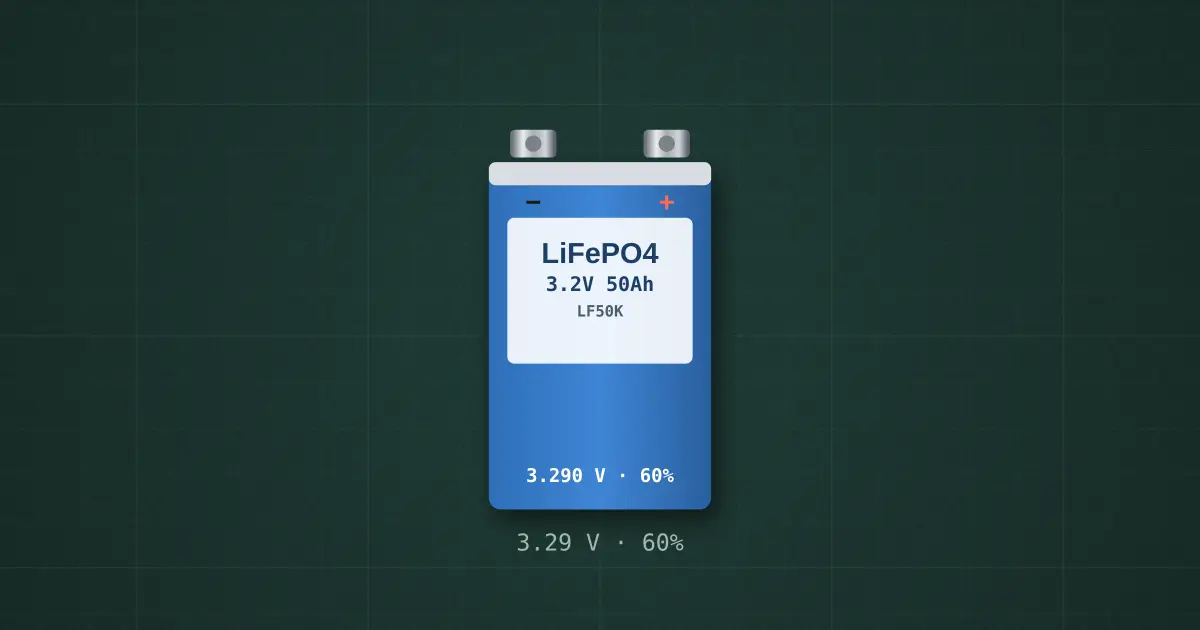

LiFePO4 prismatic cell 50 Ah (LF50K) on the simulator's bench

Try it on the benchThe lab drops it on an empty bench and opens its datasheet card.

Typical part: Prismatic LiFePO4 cell, 50 Ah (EVE LF50K class)

Pins

Ratings and limits

Voltage2.5–3.65 V, 3.2 V nominal
Capacity50 Ah · 160 Wh
Internal resistance≈ 1 mΩ
Discharge50 A continuous (1 C), 100 A peak
ChargeCC/CV to 3.6 V at ≤ 0.5 C · 0–45 °C
Cycle life≈ 4000 cycles to 80 %

How to use it

Four in series make a 12.8 V 50 Ah battery. Clamp the cells so they cannot swell, torque the busbar nuts, and always fit a 4S LiFePO4 BMS.
